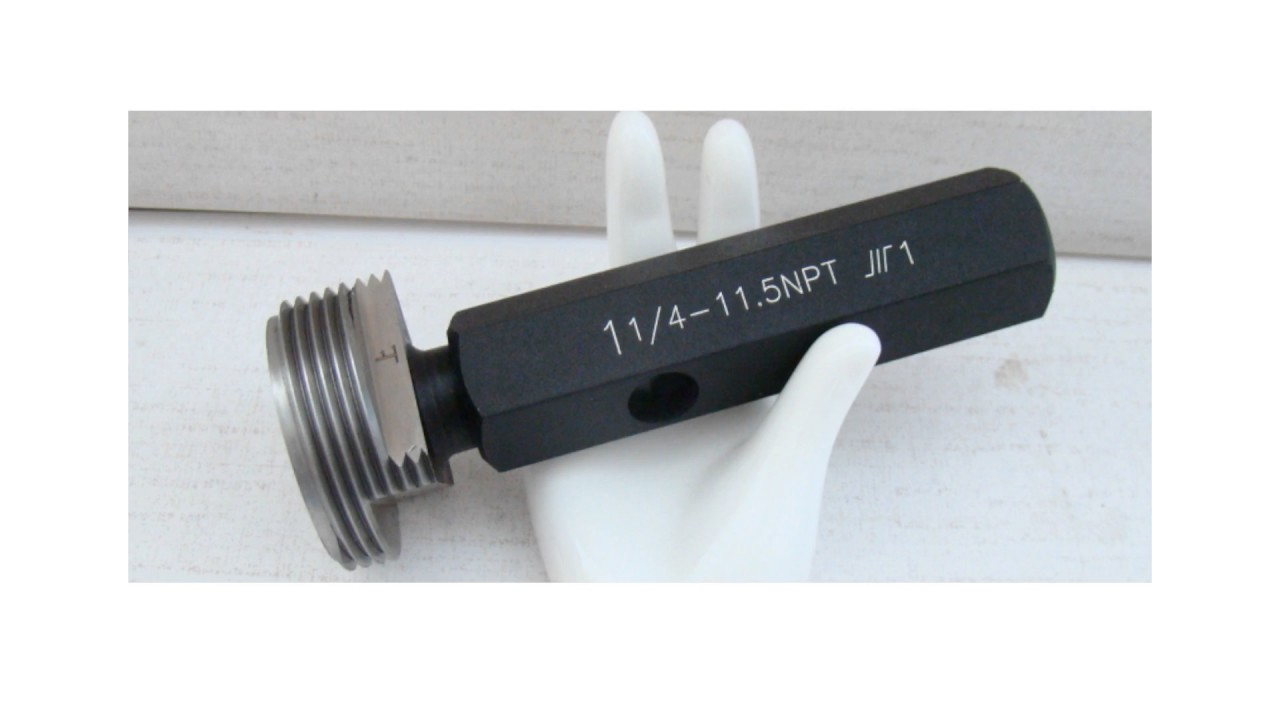

How to Use NPT Thread Gauges

Ensuring the right fit for threaded components is important in many industries, including plumbing, gas fitting, and machinery assembly. Threads that are too tight or too loose can lead to leaks, safety problems, and operational failures. NPT thread gauges help with this. These tools make sure that the threads are the right size for proper assembly and performance.

In this guide, we’ll take you through the process of using NPT thread gauges effectively, explain their importance, and offer some helpful tips to get the most out of your thread inspection. Whether you’re a seasoned technician or new to the industry, this guide will equip you with the knowledge you need to master NPT thread gauging.

What Are NPT Thread Gauges?

To understand how to use NPT thread gauges, we first need to break down what they are.

NPT stands for National Pipe Tapered thread, a common thread type used for pipe fittings and plumbing connections. Unlike straight threads, NPT threads are tapered, which allows them to form a tight seal when threaded together, ideal for preventing leaks in high-pressure environments.

NPT thread gauges are precision tools designed to verify the quality of these threads. They help determine if a threaded component meets the required standards for both minimum and maximum dimensions. There are two main types of gauges used:

GO Gauge: Ensures the thread is large enough to meet the minimum acceptable size.


NO GO Gauge: Ensures the thread is not too large, maintaining the maximum allowable size for a proper fit.

Both gauges are crucial for accurate thread inspection, ensuring that your components are compatible and safe to use.

Why Accurate Thread Measurement is Essential

Proper thread measurement isn’t just about getting the right fit—it’s about safety and performance. Here’s why using NPT thread gauges accurately matters:

Leak Prevention: Properly sized threads create a tight seal, which is especially important in piping systems where leaks can cause catastrophic failures.

Safety: Incorrectly sized threads can lead to unsafe working conditions, especially in high-pressure environments.

Durability: Threads that fit properly experience less wear and tear, ensuring longer service life for your components.

In short, accurate thread inspection with NPT thread gauges prevents costly mistakes, ensures high-quality results, and supports safety and durability.

How to Use NPT Thread Gauges Correctly

Now that we understand what NPT thread gauges are and why they matter, let’s look at how to use them effectively.

Step 1: Prepare the Thread for Inspection

Before using any thread gauge, ensure the threads are clean and free of debris. Dirt or metal filings left in the threads can interfere with accurate measurements. A clean thread will give you a more accurate reading, ensuring that the gauge fits as intended.

To clean the threads:

  • Use a wire brush or a lint-free cloth to remove any dirt.
  • You can also use compressed air to blow out any debris or particles stuck in the threads.

Step 2: Start with the "GO" Gauge

The GO gauge checks the minimum allowable size for the thread. Here’s how to use it:

  • Insert the GO plug (for internal threads) or GO ring (for external threads) gauge into the thread.
  • The gauge should thread in smoothly all the way to the proper depth.
  • If the GO gauge doesn’t fit easily, the thread is undersized, and the part should be discarded or reworked.
  • The GO gauge ensures that the thread is large enough to create a proper fit.

Step 3: Follow with the "NO GO" Gauge

After the GO gauge confirms the thread is large enough, use the NO GO gauge to check the maximum size. The NO GO gauge ensures the thread is not oversized.

  • Insert the NO GO plug (for internal threads) or NO GO ring (for external threads) gauge into the thread.
  • The NO GO gauge should not thread in more than a quarter turn or so. If it does, the thread is oversized and doesn’t meet the specifications.
  • If the NO GO gauge fits too easily, it means the thread is over-tapped and could fail in real-world applications.

By using both the GO and NO GO gauges, you ensure that the threads meet both the minimum and maximum size requirements.

Step 4: Inspect the Thread Visually

While the GO and NO GO gauges are critical for verifying thread size, a visual inspection can catch issues that the gauges may miss, such as:

  • Burrs or nicks on the threads
  • Thread wear or deformities
  • Surface damage that could affect performance

Visually inspecting the threads ensures you’re not missing any defects that could interfere with the thread's fit or function.

Step 5: Record Your Results

It’s essential to keep track of your inspections. This creates a record that can be referenced later if there’s an issue with the part.

Record the following information:

  • Part number or description
  • The results of the GO and NO GO tests
  • The name of the inspector
  • The date and time of inspection

Keeping these records ensures traceability and helps maintain consistent quality control over time.

Common Mistakes to Avoid When Using NPT Thread Gauges

Even experienced inspectors can make mistakes when using NPT thread gauges. Here are a few common errors to watch out for:

1. Forcing the Gauge Into the Thread

If you have to force the gauge into the thread, it’s a sign that the thread is either too tight (for the GO gauge) or too loose (for the NO GO gauge). Forcing the gauge can damage both the tool and the thread, leading to inaccurate readings.

2. Skipping Calibration

Over time, gauges can lose their accuracy. Make sure your NPT thread gauges are calibrated regularly to ensure they provide precise measurements. Failure to do so can lead to discrepancies in thread inspections.

3. Ignoring Thread Debris

Even small particles can cause inaccurate measurements. Always clean the threads before inspection, especially if you're working in a dusty or metal-heavy environment.

The Best Place to Get Your NPT Thread Gauges: Kobray

When it comes to sourcing high-quality NPT thread gauges, Kobray is the place to go. Kobray is an online B2B marketplace where you can find a wide range of industrial tools and equipment, including precision thread gauges for thread inspection.

Why Choose Kobray for Your NPT Thread Gauges?

Wide Selection: Kobray offers a wide range of thread gauge options, ensuring you find the exact tool you need for your job.

Trusted Suppliers: The marketplace features verified suppliers who provide high-quality, reliable products.

Convenience: With a user-friendly platform, Kobray makes it easy to find, compare, and order thread gauges online.

For example, the Baker Thread Gauges GO and NO GO Thread Plug and Thread Ring Gauge Set is a great choice for anyone in need of reliable thread inspection tools. This set is designed for professionals who require precision when measuring NPT threads, ensuring both quality and accuracy.



Conclusion

Accurate thread measurement is essential for ensuring the safety, durability, and performance of threaded components. By using NPT thread gauges correctly, starting with the GO gauge and following up with the NO GO gauge, you can ensure that threads meet the required specifications and perform reliably in their applications.

For all your thread inspection needs, Kobray is your trusted marketplace for finding top-quality products like the Baker Thread Gauges GO and NO GO Thread Plug and Thread Ring Gauge Set. Whether you’re a seasoned pro or a beginner, the right tools and knowledge will help you achieve accurate, safe, and efficient results.
