GMDT MARINE & INDUSTRIAL ENGINEERING PVT. LTD.

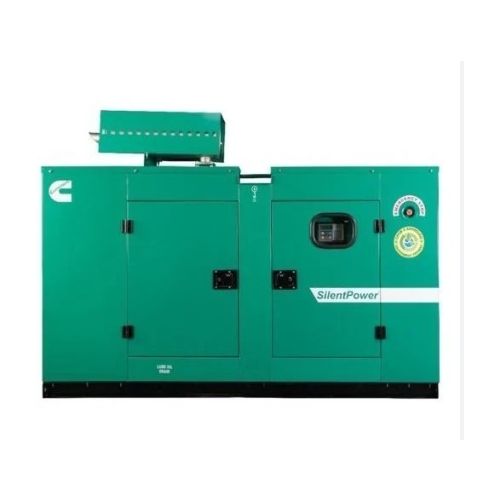

250 kVA Cummins Diesel Generator Heavy Duty Silent Backup Power System for Industrial Facilities, Commercial Projects and Infrastructure Use, Reliable DG Set for High Load Demand
AED 92,800.00 - 94,550.00
/Piece
MOQ: 1 Piece
Lead Time
Quantity (Pieces)
1 - 1
>2
Lead Time (Days)
30
Negotiated
Get the latest update on price, transportation and customization.
AED 94,550.00
SKU
GMDT0008
Basic Info
| Generator Type | 250 kVA Cummins Diesel Generator |
| Rated Power | 45KVA |
| Genset Type | Silent |
| Phase | 3 Phase |
| Model Number | GPWII-PII-45 |
| Genset Brand | Greaves Power |
| Power (kVA) | 45 kVA |
| Frequency | 50 Hz |
| Fuel Tank Capacity | 150 Litres |
| Fuel Consumption (at 100% Load) | 10.7 ltr/hr |
| Compression Ratio | 16.8 |
| Displacement | 3.66 L |
| Insulation | Class H |
| Lube Oil Sump Capacity | 8.5 L |
| Maximum Allowable Back Pressure | 4.5 kPa |
| Brand | Greaves Power |
| Engine Model | 3G11TAG25 |
| Engine Type | TCAC |
| Genset Model | GPWII-PII-45 |
| Genset Output | 45 (KVA) / 45 (KW) |
| Cylinder Arrangement | Inline |
| Bore and Stroke | 108 x 133 mm |
| Over Speed Trip | 1650 RPM |
| Air Cleaner Type | Dry |
| Charging Alternator Voltage | 12 VDC |
| Current | 35 A |
| Starter Motor Rated Voltage | 12 V |
| Battery Voltage | 12 VDC |
| Battery Capacity | 88 AH |
| Recommended Fuel | HSD |
| Oil Change Period | 500 hrs |
| Oil Consumption | Less than or equal to 0.2% SFC |
| Oil Filter Type | Spin on type |
| Recommended Oil Grade | 15W40, Greaves Maxtherm, API CI4 |
| Oil Cooler | Water Cooled |
| Radiator System Capacity | 15 L (including engine) |
| Water Pump Type | Centrifugal Gear Driven |
| Engine Rating or Max Power at rated RPM in KW or BHP | 59 (80.1) |
| Alternator Voltage | 380-440 V |
| Alternator Frequency | 50 Hz |
| Alternator Current | 62.6 A (@ 0.8 PF) |
| Alternator Type | 4 Pole, Rotating field |
| Exciter Type | Brushless (Permanent magnet optional) |
| Voltage Regulator | Solid State |
| Temperature Rise | 125 Deg. C (Class H) |
| Coupling | Flexible disc close coupled |
| Voltage Regulation | 2 Phase sensing, +/-1% |
| One Step Load Acceptance | 100% of rating |
| Unbalance Load Capability | 25% of rated current |
| Dimensions | 2500 x 1150 x 1525 mm |
| No of Cylinders | 3 |
| Genset Rating | Prime Power |
| Rated RPM | 1500 |
| Governor Type | Mechanical |
| Class of Governing | G2 |
| Country of Manufacture | India |
Packaging & Delivery
| Product Weight | 1,000.00 Kg |
