FEFCO SOLUTIONS

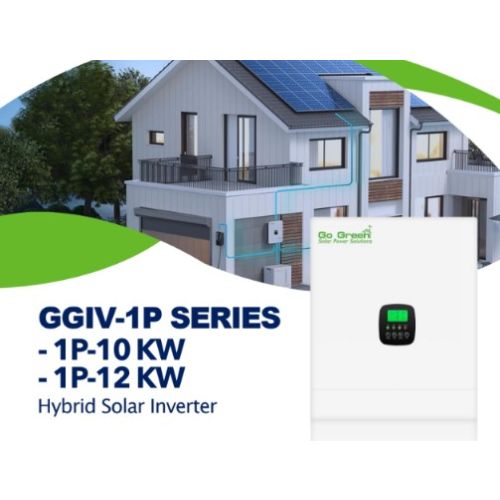

GGIV‑1P Series Hybrid Solar Inverter – Single‑Phase MPPT Hybrid Solar Inverter for Residential and Small Commercial Grid‑Tied Off‑Grid Systems
AED 1,200.00 - 2,200.00
/Piece
MOQ: 10 Pieces
Lead Time
Quantity (Pieces)
1-10
> 11
Lead Time (Days)
12
Negotiated
Get the latest update on price, transportation and customization.
AED 2,200.00
SKU
FEFCO0022
Basic Info
| Product Type | GGIV-1P SERIES Hybrid Solar Inverter |
| Category | GGIV-1P-10KW, GGIV-1P-12KW |
| Max PV Input Power | 6000W × 2, 6000W × 2 |
| MPPT Tracking Voltage Range | 80Vdc ~ 450Vdc, 80Vdc ~ 450Vdc |
| Rated Voltage | 360Vdc, 360Vdc |
| Max PV Input Voltage (VOC) | 500Vdc, 500Vdc |
| Max PV Input Current | 22A × 2, 27A × 2 |
| Number of MPPT | 2, 2 |
| Battery Type | Lead‑acid / Lithium / Custom, Lead‑acid / Lithium / Custom |
| Rated Battery Voltage | 48Vdc, 48Vdc |
| Charging Current | 238.4A, 284.7A |
| Max PV Charging Current | 180A, 200A |
| Max AC Charging Current | 120A, 140A |
| Max Charging Current | 180A, 200A |
| Rated Output Power | 10KW, 12KW |
| Rated Output Voltage | 230Vac, 230V |
| Output Phase | 1Φ, 1Φ |
| Frequency | 50Hz / 60Hz, 50Hz / 60Hz |
| Rated Output Current | 44.5A, 52.2A |
| Power Factor | >0.98, >0.98 |
| Rated Input Voltage | 230V, 230V |
| Input Phase | 1Φ, 1Φ |
| Max Input Current | 77.2A, 91.3A |
| Output Voltage Accuracy | ±2%, ±2% |
| Output Wave | Pure Sine Wave, Pure Sine Wave |
| Max Conversion Efficiency | 94%, 94% |
| MPPT Efficiency | ≥99.9%, ≥99.9% |
| Transfer Time | 10ms, 10ms |
| Display | LCD + LED, LCD + LED |
| Cooling | Intelligent Fan, Intelligent Fan |
| Communication | RS485 / Mobile App (WiFi or GPRS Optional), RS485 / Mobile App (WiFi or GPRS Optional) |
| Protection Degree | IP20, IP20 |
| Installation | Wall‑Mounted, Wall‑Mounted |
| Battery Low Voltage Alarm | 44Vdc, 44Vdc |
| Battery Protection | 42Vdc, 42Vdc |
| Anti‑Islanding | ≥2s, ≥2s |
| Short Circuit Protection | Automatic / Breaker, Automatic / Breaker |
| Temperature Protection | > 90°C shutdown, > 90°C shutdown |
| Operating Temperature | -10°C ~ 50°C, -10°C ~ 50°C |
| Storage Temperature | -15°C ~ 60°C, -15°C ~ 60°C |
| Noise | ≤ 55dB, ≤ 55dB |
| Elevation | 2000m (derating above), 2000m (derating above) |
| Humidity | 0% ~ 95% non‑condensing, 0% ~ 95% non‑condensing |
| Product Size (L×W×H) | 535 × 462 × 117 mm, 630 × 540 × 130 mm |
| Package Size | 630 × 557 × 212 mm, 730 × 635 × 225 mm |
| Country of Manufacture | United Arab Emirates |
Packaging & Delivery
| Product Weight | 22.00 Kg |
