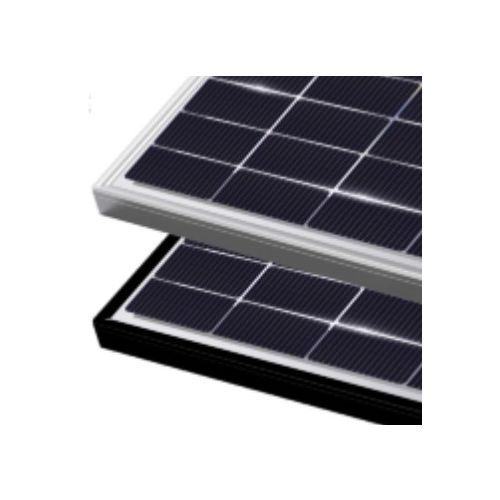

GGSP‑610‑650W 610‑650W‑182M/156TB Solar PV Module – High‑Efficiency 182M/156TB Half‑Cut Mono PERC Panel for Rooftop and Ground‑Mount Solar Plants
AED 450.00 - 650.00
/Piece
MOQ: 10 Pieces
Lead Time
Quantity (Pieces)
1-10
> 11
Lead Time (Days)
12
Negotiated
Get the latest update on price, transportation and customization.
AED 650.00
SKU
FEFCO0023
Basic Info
| Product Type | GGSP-610-650W 610-650W-182M/156TB |
| Rated Power (Pmax) | 610–650 Wp, 455–478 Wp, 683–715 W, 683–715 W |
| Current at Pmax (Impp) | 12.85–12.98 A, 10.77–11.13 A, 14.04–14.71 A, 14.04–14.71 A |
| Voltage at Pmax (Vmpp) | 47.50–47.79 V, 42.23–42.90 V, 48.65 V, 48.65 V |
| Open Circuit Voltage (Voc) | 56.81–56.98 V, 52.41–53.28 V, 58.19 V, 58.19 V |
| Short Circuit Current (Isc) | 13.58–13.72 A, 11.26–11.64 A, 14.84–15.54 A, 14.84–15.54 A |
| Module Efficiency | 21.82% |
| Power Tolerance | 0 ~ +3% |
| NOCT | 45 ± 2 °C (Irradiance 800 W/m², ambient 20°C, wind 1 m/s) |
| Operating Temperature | -40 ~ 85 °C |
| Temperature Coefficient Pmax | -0.46%/°C |
| Temperature Coefficient Isc | 0.046%/°C |
| Temperature Coefficient Voc | -0.25%/°C |
| Reference Bifacial Factor | 80 ± 5% |
| STC Conditions | Irradiance 1000 W/m², module temperature 25°C, AM=1.5 |
| Maximum System Voltage | 1000 V |
| Fuse Rating | 200 A |
| Label | 1200 |
| Barcode | 400–2465 |
| Number of Cells | 156 pcs |
| Cell Type | N‑TOPCon Mono |
| Module Size | 2465 × 1134 × 35/30 mm |
| Module Height | 35 / 30 / 31 mm |
| Glass Thickness | 2.0 mm |
| Frame Type | Anodized Aluminum Alloy |
| Weight | 34 kg |
| Cables / Connectors | 4.0 mm², MC4 compatible |
| Junction Box | IP68, 1500V DC, 3 Diodes |
| Drain Holes | 8 |
| Mounting Holes | 8–14 × 9 |
| Grounding Holes | 6 |
| Cable Length | +300 mm / -200 mm (Customizable, connector included) |
| I‑V Characteristics at Different Irradiance | 1000 W/m² → 630–560 W, 800 W/m² → 490 W, 600 W/m² → 350 W, 400 W/m² → 280 W, 200 W/m² → 210 W |
| I‑V Characteristics at Different Temperatures | 0–16 A / 0–16 V (Graph reference, detailed test) |
| Additional Rear‑Side Gain | Depends on mounting (structure, height, tilt angle, albedo) |
| Cell Temperature | 25 °C |
| Test Conditions | AM1.5, 1000 W/m² (Irradiance / Spectrum) |
| I‑V Measurement Temperature | 25°C, 30°C, 35°C |
| Number of Modules per Pallet | 36 / 16 pcs |
| Packaging Box Dimensions (L×W×H) | 2485 × 1120 × 1260, 1260 × 1120 × 2595 mm |
| Box Gross Weight | 1080 / 1250 kg |
| Number of Modules per 40ft (HQ) Container | 496 / 576 pcs |
| Number of Pallets per 40ft (HQ) Container | 16 pcs |
| Country of Manufacture | United Arab Emirates |
Packaging & Delivery
| Product Weight | 34.00 Kg |
