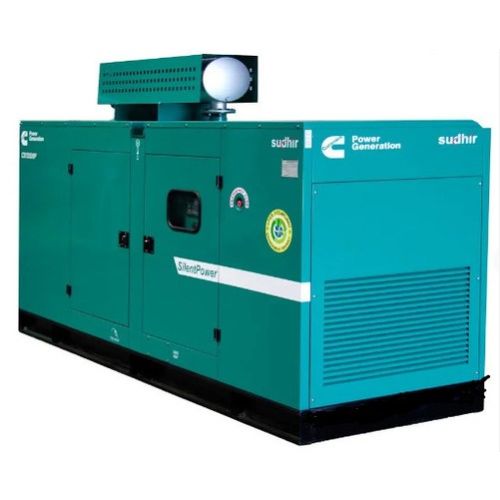

82.5 kVA Cummins Diesel Generator Silent Power Backup System for Commercial Buildings and Industrial Applications, Fuel Efficient Reliable DG Set for Continuous and Standby Use
AED 44,800.00 - 46,150.00
/Piece
MOQ: 1 Piece
Lead Time
Quantity (Pieces)
1 - 1
>2
Lead Time (Days)
30
Negotiated
Get the latest update on price, transportation and customization.
AED 46,150.00
SKU
GMDT0007
Basic Info
| Generator Type | 82.5 kVA Cummins Diesel Generator |
| Rated Power | 10 kVA |
| Phase | Three Phase |
| Genset Type | Silent |
| Fuel Type | Diesel |
| Rated Voltage | 415 V |
| Engine Make | Greaves |
| Model Number | GPWII-PII-10E |
| Genset Brand | Greaves Power |
| Power (kVA) | 10 kVA |
| Start Type | Electric Start |
| Usage | Commercial |
| Frequency | 50 Hz |
| Engine Brand | Greaves |
| Fuel Tank Capacity | 50 Litres |
| Fuel Consumption (at 100% Load) | 3 Ltr/hr |
| Dimension | 1800 x 950 x 1335 mm |
| Displacement | 1.43 L |
| Lube Oil Sump Capacity | 5.5 L |
| Number of Cylinders | 2 |
| Bore and Stroke | 91 x 110 mm |
| Charging Alternator Voltage | 12 VDC |
| Current | 35 A |
| Compression Ratio | 17.5 |
| Alternator Type | 4 Pole, Rotating field |
| Engine Type | Natural Aspirated |
| Genset Rating | Prime Power |
| Genset Output | 10 (KVA) / 10 (KW) |
| Cylinder Arrangement | Inline |
| Governing Type | Mechanical / G2 (Type) |
| Air Cleaner Type | Dry |
| Starter Motor Rated Voltage | 12 VDC |
| Battery Voltage | 12 VDC |
| Battery Capacity | 88 AH |
| Recommended Fuel | HSD |
| Oil Change Period | 500 hrs |
| Oil Consumption | 0.1% SFC |
| Oil Filter Type | Spin on type |
| Recommended Oil Grade | 15W40, Greaves Maxtherm, API CI4 |
| Radiator System Capacity | 7.5 L (including engine) |
| Water Pump Type | Engine Mounted |
| Rated RPM | 1500 |
| Alternator Voltage | 380-440 V |
| Alternator Frequency | 50 Hz |
| Alternator Current | 43.4 A / 13.9 A (@ 0.8PF) |
| Exciter Type | Brushless |
| Voltage Regulator | Solid State, volts/Hertz |
| Alternator Insulation | Class H |
| Temperature Rise | 125 Deg. C (Class H) |
| Coupling | Flexible disc, (CLOSE COUPLED) |
| Voltage Regulation | 2 Phase sensing, +/-1% |
| One Step Load Acceptance | 100% of rating |
| Over Speed Trip RPM | 1650 |
| Unbalance Load Capability | 25% of rated current |
| Maximum Allowable Back Pressure | 4 kPa |
| Engine Model | G-12-II |
| Genset Model | GPWII-PII-10 |
| Engine Rating or Max Power at Rated RPM in KW or BHP | 13.2 (18) |
| Country of Manufacture | India |
