How Does a Variable Frequency Drive Work

If you've ever wondered how industrial motors run at variable speeds without burning out or wasting energy, the answer lies in a device called a Variable Frequency Drive or VFD. Whether you're an engineer, a technician, or simply someone curious about industrial automation, understanding how a VFD works can open the door to smarter, more energy-efficient motor control.

In this comprehensive guide, we'll walk you through everything: what a VFD is, how it works step by step, its key components, real-world applications, energy savings, and common FAQs all in plain language.



What Is a Variable Frequency Drive (VFD)?

A Variable Frequency Drive (VFD) is an electronic device used to control the speed and torque of an AC (alternating current) motor by varying the frequency and voltage of the electrical power supplied to it. It is also known by several other names, including:

  • Adjustable Frequency Drive (AFD)
  • Variable Speed Drive (VSD)
  • Inverter Drive
  • AC Drive
  • Frequency Converter

All these terms refer to the same fundamental technology. The VFD acts as an intelligent intermediary between the power supply and the motor, giving operators precise control over motor speed  something that was not possible with traditional direct-on-line (DOL) starters.

Why Is Speed Control Important?

Before diving into how a VFD works, it's worth understanding why controlling motor speed matters. In many industrial applications, motors don't need to run at full speed all the time. Consider these examples:

  • A water pump supplying a building may only need 60% capacity during off-peak hours.
  • A conveyor belt in a factory might need to slow down when products are being loaded.
  • An HVAC fan system needs to ramp up gradually to avoid mechanical shock.
  • A centrifugal compressor must respond to changing pressure demands dynamically.

Running motors at full speed constantly  when partial speed would suffice  wastes enormous amounts of energy. This is where the VFD becomes invaluable.

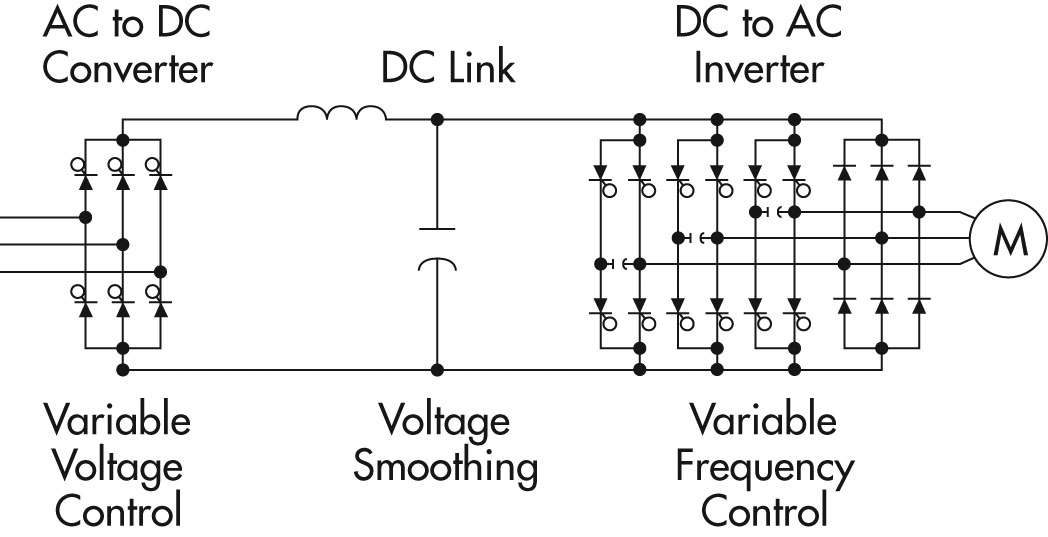

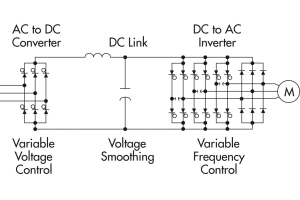

How Does a Variable Frequency Drive Work? The 3-Stage Process

At its core, a VFD takes fixed-frequency AC power from the grid, converts it, and delivers variable-frequency AC power to the motor. This is accomplished through three distinct stages:

Stage 1: The Rectifier (AC to DC Conversion)

The process begins the moment grid power, typically 50 Hz or 60 Hz AC at 230V, 460V, or 480V enters the VFD. The first stage is the Rectifier, which converts incoming AC power into Direct Current (DC).

This is done using diodes (in simpler drives) or thyristors/SCRs (in more advanced regenerative drives). The diodes allow current to flow in only one direction, effectively 'rectifying' the alternating waveform into a pulsating DC signal.

  ⚙️ Technical Note:
A 3-phase rectifier uses six diodes arranged in a bridge configuration. This produces a DC voltage that is approximately 1.35 times the RMS line-to-line AC voltage.

The output at this stage is not perfectly smooth it has ripples. That's where Stage 2 comes in.

Stage 2: The DC Bus / Filter Stage

The pulsating DC from the rectifier passes through what is called the DC Bus  a combination of large capacitors and sometimes inductors (also called a DC link choke). These components serve two critical purposes:

  • Smoothing: Capacitors absorb the ripples and stabilize the DC voltage, making it as steady as a battery.
  • Energy Storage: The DC bus acts as an energy reservoir, supplying consistent power to the inverter stage even during momentary fluctuations.

Stage 3: The Inverter (DC to Variable AC)

This is the most sophisticated part of the VFD  and the reason it's sometimes called an 'inverter drive.' The inverter takes the stable DC voltage from the bus and converts it back into AC —but this time at a variable frequency and voltage chosen by the user or control system.

Modern VFDs use power electronic devices called IGBTs (Insulated Gate Bipolar Transistors) to accomplish this. These high-speed switches can turn on and off thousands of times per second, controlled by a technique known as:

The resulting output is a series of voltage pulses that, when applied to the motor's inductive windings, produce a smooth current waveform virtually identical to a pure sine wave. The motor 'sees' this as a perfectly normal AC supply  just at a different frequency.

The V/Hz Ratio: Why Voltage Matters Too

A critical concept in VFD operation is the relationship between voltage and frequency. An AC motor's magnetic flux  and therefore its torque —depends on the ratio of voltage to frequency (V/Hz). This is sometimes called the volts-per-hertz ratio.

If you reduce frequency without reducing voltage, the motor's iron core becomes over-magnetized (magnetic saturation), causing excess heat, vibration, and potential damage. Conversely, if you reduce voltage too much without adjusting frequency, the motor loses torque.

A well-designed VFD maintains a constant V/Hz ratio across the entire speed range, ensuring the motor operates safely and efficiently at any speed. For example:

  • 100% Speed: 60 Hz, 460V
  • 75% Speed: 45 Hz, 345V
  • 50% Speed: 30 Hz, 230V
  • 25% Speed: 15 Hz, 115V

Key Components of a VFD



A complete VFD unit contains several important components beyond the three main stages:

  • Control Board (Microprocessor/DSP): The brain of the drive. It executes algorithms, monitors inputs/outputs, and generates PWM signals for the IGBT gate drivers.
  • Gate Driver Circuits: Electronic circuits that amplify the control signals to the level needed to switch the IGBTs on and off reliably.
  • Input EMI Filter: Reduces electromagnetic interference generated by the drive from feeding back into the power supply and polluting other equipment.
  • Dynamic Braking Resistor: An optional component that dissipates excess energy as heat when the motor decelerates quickly.
  • Heat Sink & Cooling Fan: IGBTs generate significant heat during switching. Heat sinks and fans (or liquid cooling in large drives) keep components within operating temperature.
  • Human Machine Interface (HMI): A display panel allowing users to set parameters like target speed, acceleration ramp, protection thresholds, and communication protocols.

Control Methods Used by VFDs

 Modern VFDs don't just vary frequency blindly they use sophisticated control strategies to optimize motor performance:

V/Hz (Volts per Hertz) Control
The simplest and most common control method. The drive maintains a constant V/Hz ratio. Best for applications like fans and pumps where load torque varies with speed. Does not require motor feedback sensors.


Vector Control (Field-Oriented Control)
A more advanced method that independently controls the magnetic flux and torque-producing components of the motor current. This delivers much higher dynamic performance and is used in demanding applications like cranes, winders, and servo systems. Can be implemented with or without an encoder (Sensorless Vector Control or Closed-Loop Vector Control).


Direct Torque Control (DTC)
An even more advanced technique that directly controls the motor's torque and flux without a PWM modulator. DTC offers extremely fast torque response (within microseconds) and is used in the most deman



Energy Savings: The Cube Law Advantage

One of the most compelling reasons to install a VFD is the dramatic energy savings it delivers  especially for centrifugal loads like fans, pumps, and compressors. The reason lies in the Affinity Laws (also called the Fan/Pump Laws):

This cube relationship is the key. If you reduce a pump or fan speed by just 20% (to 80% of full speed), the power required drops to only 51% of the original. A 50% speed reduction reduces power consumption to just 12.5% of the original!

In practical terms: A 100 HP pump motor running at 80% speed costs only as much electricity as a 51 HP motor running at full speed. Over the lifetime of a motor  often 20 to 30 years  these savings are enormous.



Real-World Applications of VFDs

VFDs are found in virtually every industry and application where motor speed control adds value:


HVAC Systems
Variable Air Volume (VAV) air handling units, chillers, cooling towers, and pumps all benefit enormously from VFDs. A typical commercial building can reduce HVAC energy costs by 30–50% with VFD-controlled fans and pumps.


Water and Wastewater Treatment
Municipal water plants use VFDs on large pumping stations to maintain constant water pressure despite varying demand throughout the day, without the energy waste of throttling valves or bypass systems.


Manufacturing & Conveyors
Assembly lines, conveyor belts, mixers, extruders, and machine tools use VFDs for precise speed control, smooth starts, and synchronized multi-motor systems.


Oil & Gas
Compressors, pipeline pumps, and submersible pump drives use VFDs in both onshore and offshore applications for reliable, controlled operation under harsh conditions.


Elevators & Cranes
Modern elevators use VFDs to provide smooth, comfortable acceleration and deceleration profiles while minimizing jerk and improving stopping precision. Cranes use vector-controlled VFDs for precise load positioning.

Renewable Energy
Wind turbine generators use VFDs to interface variable-speed turbines with the fixed-frequency grid. Solar pump inverters are a simplified form of VFD for irrigation applications.



Benefits of Using a Variable Frequency Drive

Beyond energy savings, VFDs deliver a wide range of operational and maintenance benefits:

Soft Starting: Motors ramp up gradually, eliminating the massive inrush current (up to 7x rated current) of direct-on-line starting. This reduces stress on the motor, mechanical couplings, and the electrical supply.
Precise Speed Control: Speed can be set to any value within the drive's range, enabling process optimization impossible with fixed-speed motors.
Reduced Mechanical Wear: Smooth acceleration/deceleration reduces gear, belt, and bearing wear, extending equipment life significantly.
Built-in Protection: Modern VFDs include protections for overcurrent, overvoltage, undervoltage, overtemperature, phase loss, ground fault, and motor overload.
Power Factor Improvement: VFDs with front-end reactors or active front ends can significantly improve the power factor of the installation.
Process Integration: VFDs communicate over industrial protocols (Modbus, Profibus, EtherNet/IP, PROFINET) enabling integration with PLCs, SCADA, and Building Management Systems.
Reduced Mechanical Components: VFDs can often replace gearboxes, fluid couplings, and throttling valves, reducing maintenance complexity.



Common Challenges and Considerations

While VFDs offer tremendous advantages, there are important considerations to keep in mind during selection and installation:


1.Harmonics
The rectifier stage draws non-sinusoidal current from the supply, generating harmonics that can disturb other equipment on the same electrical network. Solutions include line reactors, harmonic filters, 12-pulse or 18-pulse rectifiers, or Active Front End (AFE) drives.


2.Motor Insulation Stress
The fast-switching PWM output of a VFD generates high dV/dt (voltage rise time) pulses that can stress motor winding insulation, particularly over long cable runs. Solutions include output reactors, dV/dt filters, or using motors rated for inverter duty (IEC or NEMA inverter-rated).


3.Bearing Currents
High-frequency currents induced by PWM switching can find a path through motor shaft bearings, causing pitting and premature bearing failure. Solutions include insulated bearings, shaft grounding rings, and common-mode chokes.


4.Cable Length Limitations
Long cables between VFD and motor create capacitance that can cause reflected voltage waves. Cable length limits depend on the drive's carrier frequency and output filter. Always follow manufacturer guidelines.


5.Environment and Enclosure
VFDs generate heat and are sensitive to dust, moisture, and vibration. Selecting the correct IP (Ingress Protection) rating and providing adequate cooling is essential for reliable operation.



How to Select the Right VFD

Choosing the correct VFD for your application involves evaluating several key parameters:


Motor Rated Current and Voltage: The VFD's output current rating must match or exceed the motor's full-load amps (FLA).
Load Type: Constant torque (conveyors, compressors) vs. variable torque (fans, pumps) requires different overload ratings typically 150% for CT and 110% for VT.
Speed Range: Determine the minimum and maximum speed required and whether constant torque is needed across the range.
Control Method: V/Hz for simple fan/pump applications; Vector or DTC for high-performance positioning or torque-critical applications.
Environment: Indoor vs. outdoor, temperature range, altitude (derate above 1000m), humidity, and presence of corrosive gases.
Communications: Required fieldbus protocols for integration with control systems.
Braking Requirements: Dynamic braking or regenerative braking for loads with high inertia or frequent stopping.



VFD Installation Best Practices

Proper installation is crucial for VFD performance, reliability, and safety:

  • Mount the VFD vertically in a clean, cool, dry location with adequate clearance for airflow.
  • Use shielded (screened) motor cables and connect the shield at both the drive and motor ends to minimize EMI.
  • Install an input line reactor to reduce harmonic distortion and protect against supply voltage spikes.
  • Keep control wiring separate from power wiring to prevent interference.
  • Ensure all grounding connections are made correctly  poor grounding is a leading cause of VFD failures.
  • Commission the drive carefully: set motor nameplate data, acceleration/deceleration ramps, and protection thresholds before running.

What is the difference between a VFD and a soft starter?

A soft starter only controls the starting and stopping ramp of the motor it does not provide continuous speed control during running. A VFD provides full variable speed control at all times. Soft starters are less expensive and simpler; VFDs are more versatile and energy-efficient.

Understanding how a variable frequency drive works is fundamental knowledge for anyone involved in industrial automation, electrical engineering, building systems, or energy management. At its core, a VFD is an elegant solution to a fundamental problem: how do you control the speed of an AC motor smoothly, efficiently, and reliably?

By converting incoming AC to DC, smoothing it, and then synthesizing a new AC waveform at any desired frequency using PWM-controlled IGBTs, a VFD gives operators complete mastery over motor speed while delivering dramatic energy savings, extended equipment life, and precise process control.

As energy costs rise and sustainability goals become more demanding, VFDs will only grow in importance across every sector of industry and infrastructure. Whether you're selecting your first drive or optimizing an existing installation, the knowledge of how a VFD works and why it works is your most valuable tool.



Frequently Asked Questions (FAQs)

1.Can a VFD be used with any AC motor?

Most standard induction motors can be used with a VFD, but for best results especially at low speeds or over long cable runs  use motors labeled as 'inverter-duty' or 'VFD-rated.' These have enhanced insulation and can operate efficiently across a wide speed range.


2.Does a VFD save energy even if the motor runs at the same speed?

For variable torque loads (fans/pumps), yes  the savings are dramatic due to the cube law. For constant speed operation, the VFD's own losses slightly reduce efficiency compared to direct-on-line operation, but the soft-start benefits still apply.


3.What is the lifespan of a VFD?

Well-maintained VFDs in appropriate environments typically last 10–20 years. The most common failure points are electrolytic capacitors (which degrade over time) and cooling fans. Regular maintenance  cleaning, capacitor reforming, and fan replacement  significantly extends drive life.


4.Can a VFD run a motor faster than its rated speed?

Yes  this is called 'field weakening' operation. Above the motor's rated frequency (e.g., above 60 Hz), the drive maintains voltage constant while increasing frequency. Torque decreases in this region, but power remains roughly constant. Mechanical limits (bearings, balance) must be considered.
