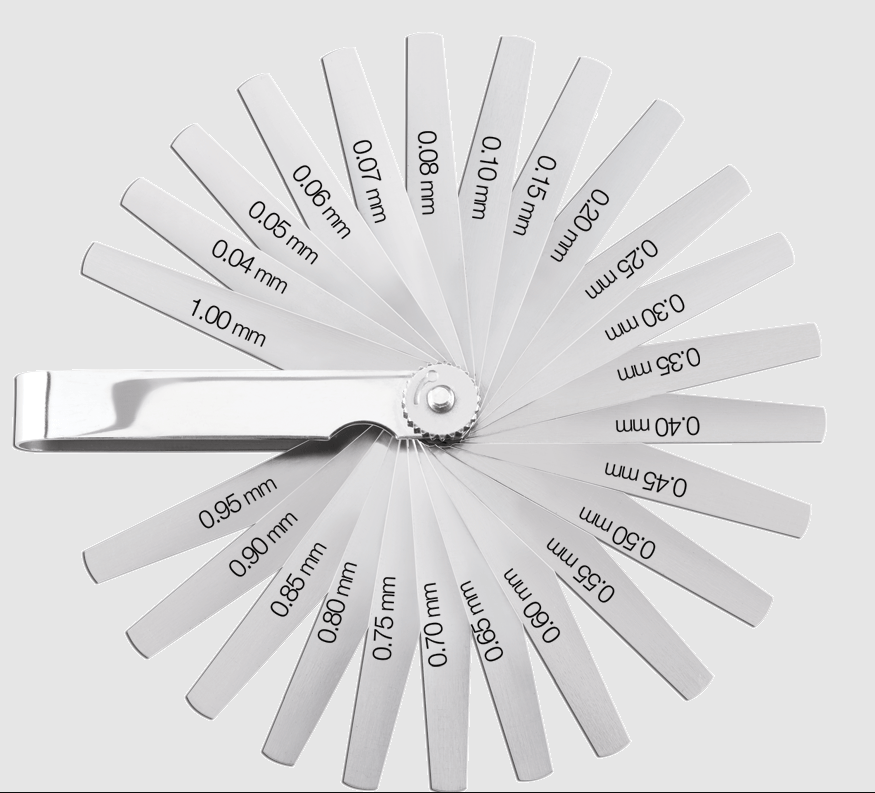

Feeler Gauge Set

A feeler gauge set is one of the most essential tools for precision measurement when working with tight tolerances. Whether you're handling automotive repair, performing engine maintenance, or using advanced machining tools, this simple yet highly effective inspection instrument ensures accurate gap measurement between components.

From checking valve clearances to setting spark plug gaps, a feeler gauge set plays a critical role in maintaining performance, safety, and reliability.

What Is a Feeler Gauge Set and Why It Matters

A feeler gauge set is a simple yet highly precise tool used to measure very small gaps between two surfaces. It consists of thin metal feeler blades, sometimes called metal shims, each manufactured to an exact thickness. These blades are usually housed in a compact folding case, making it easy to flip through and select the right size while working.

In practice, each blade acts like a thickness gauge. You slide it into a gap, and if it fits with a slight resistance, you’ve found the correct measurement. This ability to measure extremely fine clearances often down to hundredths of a millimeter makes the tool invaluable for tasks that require true precision measurement.

What makes a feeler gauge set so important is how much even a tiny gap can affect performance. In mechanical systems, clearances are not just numbers; they directly influence how parts move, heat up, and wear over time. If a gap is too tight, components may bind or overheat. If it’s too loose, efficiency drops and parts wear out faster. That’s why accurate gap measurement is essential for keeping machines running smoothly and safely.

Because of this, the tool has become a go-to inspection instrument in many fields. In automotive repair, it’s commonly used to adjust valve clearances or set spark plug gaps. During engine maintenance, it helps ensure moving parts have the correct spacing to function properly. In workshops and industrial settings, it’s also used alongside machining tools as a reliable calibration tool to maintain tight tolerances and consistent performance.

How a Feeler Gauge Set Works

A feeler gauge set works on a straightforward principle matching the thickness of a blade to the size of a gap. While the concept is simple, the accuracy it delivers in precision measurement depends on both the tool and the user’s technique.

When you use a feeler gauge, you’re essentially comparing a known thickness (the blade) to an unknown space. This makes it a practical and reliable thickness gauge for checking clearances in mechanical systems.

Measuring Gaps and Clearances

To begin, you select a blade that’s close to the expected size and gently insert it into the gap. If it slides in and fits neatly between the surfaces, it gives you a direct reading of that clearance. This process forms the basis of accurate gap measurement in everything from engines to precision assemblies.

The “Slight Drag” Concept

The key to getting an accurate reading lies in what professionals call the “slight drag” feel. The correct blade should move through the gap with a light, smooth resistance—not loose, and not forced.

If the blade moves too freely, it means the gap is larger than the blade. If it feels tight or difficult to insert, the blade is too thick. The ideal fit sits right in between, where you feel a subtle resistance as the blade slides.

Why Technique Matters

Although a feeler gauge set is a precise inspection instrument, its accuracy also depends on how it’s used. With regular practice, you develop a better sense of touch and consistency, which helps you identify the exact fit more confidently.

This combination of tactile feedback and precise blade sizing is what makes the feeler gauge such an effective calibration tool. Whether you’re working on engine maintenance, automotive repair, or using advanced machining tools, mastering this technique ensures reliable and repeatable results.

Types of Feeler Gauge Sets Explained

Not all feeler gauge sets are the same. While they all serve the purpose of gap measurement, their design, material, and format can vary depending on the job. Understanding these variations helps you choose the right tool for accurate precision measurement.

Standard Blade Feeler Gauge Sets

The most widely used type is the standard blade set. It consists of foldable metal feeler blades, usually made from steel, arranged in a compact holder. These are versatile and suitable for everyday tasks in workshops, making them a go-to inspection instrument for general use.

Metric vs Inch Feeler Gauge Sets

Feeler gauges are available in two measurement systems:

Metric sets use millimeters (mm) and are common in modern engineering and international applications


Imperial sets use inches and are often found in older automotive systems or specific industries


In many cases, professionals prefer sets that include both units for flexibility.


Specialized Feeler Gauge Designs

Some tasks require more than a standard straight blade, which is where specialized designs come in.

Wire feeler gauges are designed for measuring round gaps, such as spark plug clearances


Angled or offset gauges make it easier to access tight or obstructed areas


Long blade gauges are ideal for deep or hard-to-reach components in engines or machinery


These variations make the tool more adaptable across different types of automotive repair and engine maintenance tasks.


Material Variations

The material of the blades affects durability and application:

Steel is the most common, offering strength and long-term reliability


Brass is non-sparking and corrosion-resistant, making it suitable for sensitive environments


Plastic is used where electrical safety or surface protection is important


Choosing the right material ensures both safety and accuracy during use.


Precision and Narrow Gauges

For high-accuracy work, especially in advanced machining tools or calibration tasks, precision gauges are essential. These sets include ultra-thin and narrow blades that can measure extremely fine tolerances.

They are particularly useful when even the smallest variation in clearance can impact performance, making them a critical calibration tool in precision environments.

Key Factors to Consider Before Buying a Feeler Gauge Set

Choosing the right feeler gauge set isn’t just about picking any tool it’s about selecting one that delivers reliable precision measurement every time you use it. The right choice depends on how and where you plan to use it, whether for engine maintenance, automotive repair, or fine machining tools work.

Instead of looking at it as a checklist, think of these factors as what separates a basic tool from a dependable inspection instrument.

Measurement Range and Accuracy

The first thing to consider is the range of thicknesses the set offers. Most standard sets cover very fine measurements, often starting around 0.02 mm and going up to 1.0 mm or more .

A wider range allows you to handle different types of gap measurement tasks without needing multiple tools. If you work with precision components, smaller increments become especially important.


Blade Count and Versatility

Feeler gauge sets come with different numbers of blades. Some basic sets may have around 10 blades, while more versatile ones can include 20, 30, or even more .

More blades mean finer increments and better flexibility. It also allows you to combine blades when you need an exact measurement that isn’t available as a single piece.


Material Quality

The material directly affects durability and accuracy. Most metal feeler blades are made from hardened or stainless steel, which provides strength and long-term reliability .

Stainless steel resists corrosion, making it ideal for humid conditions


High-carbon steel offers strength and wear resistance


Brass or plastic may be included for specialized applications


If you want a tool that lasts, material quality should never be compromised.


Flexibility vs Stiffness

A good feeler gauge set strikes a balance between flexibility and rigidity.

Flexible blades are easier to insert into tight or awkward spaces


Stiffer blades provide more control and consistent readings


The right balance ensures accurate gap measurement without bending or damaging the blades.


Markings and Readability

Clear markings are essential when working quickly or in low-light conditions. Most modern gauges feature etched or printed thickness values directly on each blade.

Laser-etched markings are generally preferred because they don’t wear off easily, ensuring long-term readability during repeated use.


Ease of Use and Handling

Finally, consider how comfortable the tool is to use. A well-designed feeler gauge set should have:

A smooth folding mechanism


Secure blade locking


Comfortable grip and handling


These small details make a big difference, especially when using the tool frequently as a calibration tool in professional settings.

How to Choose the Right Feeler Gauge Set

Choosing the right feeler gauge set depends less on the tool itself and more on how you plan to use it. The same tool can serve very different purposes from simple DIY fixes to highly precise engineering work. Understanding your needs will help you pick a set that delivers reliable precision measurement without overpaying for features you don’t need.

For Beginners and DIY Users

If you’re just getting started, a basic feeler gauge set with a moderate measurement range is more than enough. These sets typically include the most commonly used sizes and are ideal for occasional gap measurement tasks like checking clearances or doing small repairs.

They’re simple, affordable, and easy to use perfect for learning how this inspection instrument works without complexity.


For Automotive Use

In automotive repair and engine maintenance, flexibility is key. You’ll often deal with different standards, so it’s best to choose a set that includes both metric and imperial measurements.

A durable steel set is recommended because it can withstand repeated use in demanding conditions, especially when working on engines where accurate spacing directly affects performance.


For Professional Use

For professionals, accuracy and consistency matter the most. A high-quality feeler gauge set with fine increments allows you to measure very small differences in clearance.

These sets are commonly used as a calibration tool in workshops, where even a slight variation can impact results. Better materials, precise markings, and long-term durability become essential at this level.


For Precision Engineering

When working in advanced applications such as machining or tight tolerance environments, standard sets may not be enough. You’ll need ultra-thin blades with extremely fine increments.

These specialized sets are designed for high-level precision measurement, where exact tolerances must be maintained. In such cases, the feeler gauge becomes more than just a tool it turns into a critical part of the entire measurement and quality control process.



How to Use a Feeler Gauge Set (Step-by-Step)

Using a feeler gauge set is straightforward, but getting accurate results depends on a careful approach. Once you understand the process, it becomes a reliable method for precise gap measurement in both simple and advanced tasks.

Step 1: Identify the Required Gap

Start by knowing the clearance you need to measure. This could come from a manufacturer’s specification, especially in engine maintenance or automotive repair work.


Step 2: Select the Closest Blade

Choose a blade that matches or is close to the expected size. Each blade acts as a thickness gauge, so picking the right starting point makes the process quicker and more accurate.


Step 3: Insert the Blade into the Gap

Gently slide the blade between the two surfaces. It should go in smoothly without forcing it. Forcing the blade can damage both the tool and the component.


Step 4: Check for Slight Resistance

This is the most important step. The correct blade will move with a light “drag.”

If it slides too easily, the blade is too thin


If it doesn’t fit or feels tight, it’s too thick


That slight resistance is what defines accurate precision measurement.


Step 5: Combine Blades if Needed

If a single blade doesn’t give the exact measurement, you can stack multiple metal feeler blades together. This allows you to achieve a precise value, especially in fine calibration work.


Step 6: Confirm the Measurement

Once you find the correct fit, double-check by sliding the blade again to ensure consistency. This step is important for repeatable and reliable results.

How to Read a Feeler Gauge Accurately

Understanding how to read a feeler gauge set is just as important as knowing how to use it. While the tool looks simple, accurate reading depends on both the markings and the method you follow. When done correctly, it becomes a highly reliable thickness gauge for precise gap measurement.


Reading the Blade Thickness

Each blade in a feeler gauge set is precisely manufactured and clearly marked with its thickness. These markings are usually shown in:

Millimeters (mm) – common in modern engineering


Inches (in) – often used in older systems or specific industries


For example, a blade marked 0.10 mm means the gap it measures is one-tenth of a millimeter. Similarly, a marking like 0.004 in represents four thousandths of an inch.

Always read the marking before inserting the blade to avoid confusion between similar sizes.


Understanding the “Correct Fit”

Reading a feeler gauge is not just about numbers—it’s about feel. The correct measurement is the thickest blade that slides through the gap with a smooth, slight resistance.

If the blade moves too freely → the gap is larger


If the blade doesn’t fit → the gap is smaller


For better accuracy, professionals often confirm the reading by checking that:

One blade fits with slight drag (Go)


The next thicker blade does not fit (No-Go)


This method improves reliability in precision measurement tasks.


Stacking Blades for Exact Measurement

Sometimes a single blade won’t match the exact gap. In that case, multiple metal feeler blades can be combined (stacked) to achieve the required thickness.

For example:

0.10 mm + 0.05 mm = 0.15 mm total gap


This makes the tool more flexible and useful across different applications. However, for highly precise work, using fewer blades is recommended because stacking can introduce small tolerance errors.


Why Accuracy Depends on Technique

Even though a feeler gauge set is a precise inspection instrument, incorrect handling can lead to false readings. Factors like dirt, blade angle, or excessive force can affect the result.

To ensure accuracy:

Keep blades clean


Insert them straight, without tilting


Avoid forcing the blade into the gap


When used correctly, a feeler gauge becomes a dependable calibration tool for everything from engine maintenance to advanced machining tools.

Common Applications of Feeler Gauge Sets

A feeler gauge set is a versatile tool used across multiple fields where accurate gap measurement is critical. From routine maintenance to precision engineering, it plays a key role as a reliable inspection instrument and calibration tool.

In practical use, it helps ensure that components are spaced correctly, which directly affects performance, efficiency, and durability.


Valve Clearance Adjustment

One of the most common uses of a feeler gauge set is adjusting valve clearances in engines. Proper spacing between the valve and rocker arm ensures smooth operation.

If the clearance is too tight, the valve may not close fully. If it’s too loose, it can cause noise and reduced efficiency. Using a feeler gauge allows precise precision measurement, helping maintain optimal engine performance.


Spark Plug Gap Setting

A feeler gauge set is also used to set the gap between the electrodes of a spark plug. This gap controls how the spark forms, which directly affects combustion.

Accurate adjustment ensures:

Better fuel efficiency


Smooth engine performance


Reduced misfires


This makes it an essential tool in automotive repair and regular engine maintenance.


Engine Timing Adjustments

In older ignition systems, feeler gauges are used to set the gap between contact points. This gap influences ignition timing and overall engine behavior.

Correct adjustment using a thickness gauge ensures consistent spark timing and reliable engine operation.


Machinery Alignment and Calibration

Beyond automotive use, feeler gauges are widely used with machining tools to check alignment and tolerances in machinery.

They help in:

Verifying clearances between components


Ensuring proper fit during assembly


Supporting accurate calibration in industrial settings


In these environments, a feeler gauge set becomes an essential calibration tool, helping maintain precision and quality control.

General maintenance and inspection tasks
It remains a core inspection instrument in both professional and DIY environments.

Feeler Gauge vs Other Measuring Tools

When working with precision measurement, it’s important to understand that no single tool does everything. A feeler gauge set, a caliper, and a micrometer each serve different purposes. Choosing the right one depends on what exactly you need to measure.


Feeler Gauge vs Caliper


A feeler gauge set is designed specifically for gap measurement. It works by inserting thin metal feeler blades into a space to determine the clearance between two surfaces. This makes it ideal for tasks like valve adjustment or spark plug gaps.

A caliper, on the other hand, is used to measure dimensions such as:

Length

Diameter (inside and outside)

Depth


While a caliper is more versatile in general measurement, it cannot accurately measure very tight internal gaps the way a feeler gauge can.

 In simple terms:

Feeler gauge = measures clearances


Caliper = measures size and dimensions



Feeler Gauge vs Micrometer

A micrometer is a highly precise instrument used to measure the thickness or diameter of solid objects. It provides extremely accurate readings, often down to microns.

However, unlike a feeler gauge set, it cannot measure gaps between assembled parts. That’s where feeler gauges excel.

Feeler gauge: Flexible, quick, and ideal for narrow spaces


Micrometer: Extremely precise but limited to external or internal dimensions of solid components



Choosing the Right Tool

Each of these tools plays a unique role:

Use a feeler gauge set when you need accurate gap measurement


Use a caliper for general measurements and dimensions


Use a micrometer when maximum precision is required for solid parts

Maintenance Tips for Long-Term Accuracy

A feeler gauge set may look simple, but maintaining it properly is essential if you want consistent and accurate precision measurement over time. Since it functions as a thickness gauge and inspection instrument, even small issues like dirt or corrosion can affect your readings.

Taking a few basic care steps will keep your tool reliable and extend its lifespan.

Keep the Blades Clean

After each use, wipe the metal feeler blades with a clean cloth. Dust, oil residue, or metal particles can stick to the surface and lead to incorrect gap measurement.

For best results, clean the blades before and after use—especially in workshop or industrial environments.


Apply Light Oil to Prevent Rust

Since most feeler gauges are made of steel, they are prone to corrosion, particularly in humid conditions. Applying a thin layer of oil helps protect the surface and keeps the blades moving smoothly.

This is especially important if you use the tool regularly for engine maintenance or outdoor work.


Store in a Dry and Safe Place

Always store your feeler gauge set in its case and keep it in a dry environment. Moisture can lead to rust, while improper storage can cause blades to bend or misalign.

Good storage habits ensure your tool remains a dependable calibration tool for long-term use.


Inspect for Wear or Damage

Over time, blades can become bent, worn, or damaged. Even slight deformation can affect accuracy.

Check your set regularly:

Replace any bent or damaged blades

Ensure markings are still readable

Confirm blades move smoothly without sticking

Proper maintenance is what keeps a feeler gauge set accurate and dependable. With regular cleaning, careful storage, and routine inspection, your tool will continue to deliver precise and consistent results across all your measurement tasks.



A feeler gauge set is a simple yet powerful calibration tool that plays a vital role in precision measurement. Whether you’re working on engine maintenance, using machining tools, or performing routine inspections, choosing the right set ensures accuracy and efficiency.

Focus on quality, measurement range, and usability. For beginners, a standard set works well, while professionals should invest in high-precision options.

In the end, the right tool doesn’t just measure gaps it ensures performance, safety, and reliability in every application.

Frequently Asked Questions

How accurate is a feeler gauge set?

Most sets provide accuracy within ±0.01 mm, making them reliable for precision work.

Can multiple blades be combined?

Yes, stacking blades allows you to achieve exact measurements.

What is the thinnest measurement available?

Some sets go as low as 0.02 mm, suitable for fine tolerances.

Should I choose metric or inch gauges?

Metric is more common globally, but having both offers flexibility.

Where can I buy a feeler gauge set?

They are available online, in hardware stores, and automotive tool shops.
