DC Motor in Textile Industry for Precision Control

When you walk into a modern textile mill, the first thing that hits you isn’t just the smell of cotton or the humidity—it is the relentless, synchronized hum of machinery. Behind every spool spinning at thousands of revolutions per minute and every loom weaving intricate patterns lies a complex engineering decision: how to control motion with absolute precision.

In this environment, the application of DC motor in textile industry processes is not just a matter of tradition; it is a matter of necessity. While the industry has seen a massive shift toward automation, the Direct Current (DC) motor remains the backbone for specific, high-stakes operations where only superior torque control will suffice.

Let’s break down why these motors are so vital, how they differ from their AC counterparts, and exactly where they fit into the journey from fiber to fabric.

What is a DC Motor? The Workhorse of Variable Speed

To understand its role, we first have to look at the hardware. A DC motor is a machine designed to convert direct current electrical energy into mechanical rotation.

Unlike the fixed speed often associated with simple fans or pumps, a DC motor offers a unique advantage: excellent speed control. By adjusting the voltage supplied to the armature or the field current, an operator can change the motor's speed without losing torque. In a textile mill, where different materials (like wool, silk, or synthetic blends) require different tensions and speeds, this flexibility is invaluable.

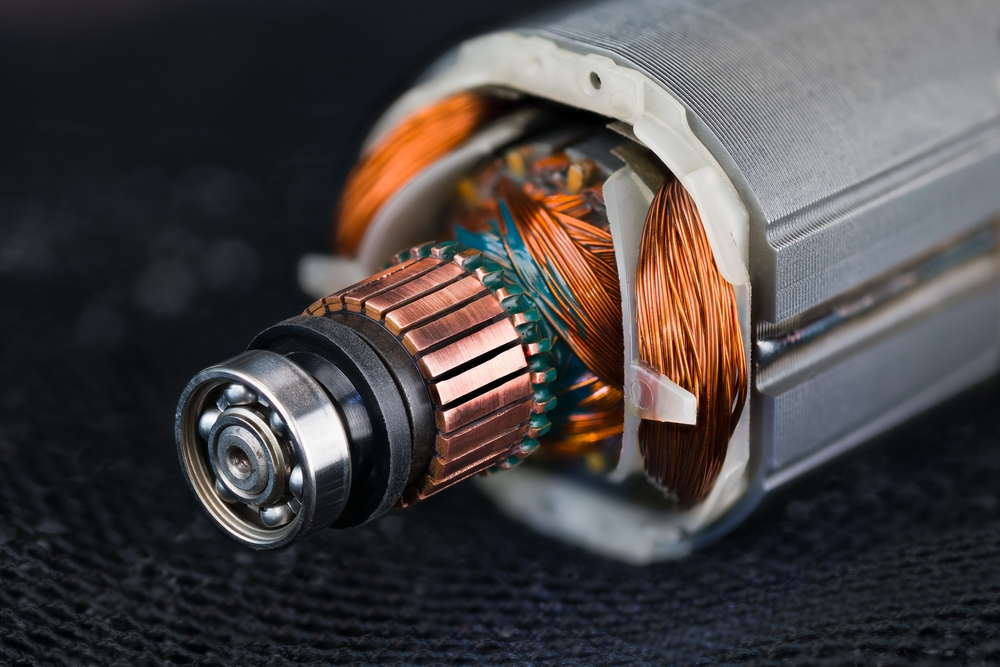

The construction is fairly standard—consisting of a stator (the stationary part providing the magnetic field) and a rotor (the armature that spins). However, it is the ability to handle high starting loads that makes them indispensable in heavy textile machinery.

Types of DC Motors Used on the Mill Floor

Not all DC motors are built the same. In the textile sector, engineers typically choose between two main configurations based on the specific application:

  • Series DC Motors: These are the sprinters of the group. They generate an enormous amount of torque at startup. You will typically find these in machines that require a heavy initial pull, such as large carding machines that need to break down bales of compressed cotton. However, they are rarely used where constant speed is critical, as they tend to "run away" if unloaded.
  • Shunt DC Motors: This is the star player in the application of DC motor in textile industry precision roles. In a shunt motor, the field winding is parallel (shunt) with the armature. This configuration offers a near-constant speed regardless of the load. For processes like spinning or winding, where maintaining consistent tension to avoid yarn breakage is the top priority, the shunt DC motor is the preferred choice.
  • Compound DC Motors: As the name suggests, these combine features of both series and shunt windings. They offer high starting torque like a series motor, but with the speed regulation of a shunt motor. These are often found in heavy-duty looms and finishing ranges.

What Makes an Electric Motor Spin? The Physics Behind the Fabric

To appreciate the precision required in textiles, it helps to understand the basic physics of motion. What makes an electric motor spin is the interaction between two magnetic fields.

When current flows through the armature (the rotating part), it creates an electromagnetic field. This field tries to align with the magnetic field produced by the stator (the stationary part). However, because the current is switched via the commutator (in brushed DC motors) just as the poles align, the magnetic field shifts, keeping the rotor in perpetual motion.

In textile machinery, this principle is exploited for torque control. If the magnetic field weakens or the current fluctuates, the spinning speed changes. Because textile processes demand consistent yarn twist and fabric take-up, the motor must maintain a stable electromagnetic environment. Any fluctuation results in defects—a luxury high-quality mills cannot afford.

Difference Between AC & DC Motors in Textile Settings

A common question among mill operators is why not simply use Alternating Current (AC) motors for everything? After all, AC induction motors are cheaper and require less maintenance. However, the difference between AC & DC motors becomes evident when you look at the specific demands of textile production.

AC motors (induction) and DC motors differ significantly in performance and application. In terms of speed control, AC motors are more complex and typically require a Variable Frequency Drive (VFD) to adjust speed, whereas DC motors offer simpler control by varying voltage or field current. When it comes to starting torque, AC motors generally have lower torque at startup unless supported by a high-performance VFD, while DC motors naturally provide high starting torque, making them ideal for heavy loads.

For precision, AC motors perform well in constant-speed applications but may struggle with rapid changes like dynamic braking or quick reversals. In contrast, DC motors excel in situations requiring consistent torque across a wide speed range, offering better precision and control. Regarding maintenance, AC motors have the advantage of being low-maintenance since they do not use brushes, whereas brushed DC motors require more frequent upkeep due to wear on the commutator and brushes.

While AC motors with VFDs are gaining ground for energy efficiency, DC motors still hold the crown for applications requiring instantaneous response. If a machine needs to stop, reverse, or adjust speed within a fraction of a second to prevent a thread break, a DC drive is often the go-to solution.

Uses of Motor in Textile Industry: Where DC Takes the Lead

Now, let’s get into the specifics. The uses of motor in textile industry are vast, ranging from HVAC systems to conveyor belts. However, the critical application of DC motor in textile industry processes falls into three core areas where precision cannot be compromised.

1. Spinning Machines: Consistency is King

In the spinning section, fibers are drawn out and twisted into yarn. This process, known as drafting, requires extremely precise speed synchronization between rollers.

The DC Role: DC motors drive the drafting rollers. If the front roller speeds up even slightly compared to the back roller, the yarn becomes thin and weak. DC drives provide the constant torque required to maintain a consistent draft ratio. Older ring frames often rely on DC motors for the spindle drive because they offer smooth acceleration, preventing the delicate yarn from snapping during startup.



2. Weaving Looms: The Art of Synchronization

Weaving involves interlacing warp (lengthwise) and weft (crosswise) threads. Modern looms are high-speed machines that require split-second timing.

The DC Role: In high-speed air-jet or rapier looms, DC motors are frequently used for the take-up mechanism. As the fabric is woven, the take-up roller must pull the cloth forward at a precise rate to maintain the pick density (threads per inch). A shunt DC motor excels here, ensuring that the tension remains uniform across the entire width of the fabric, preventing the dreaded issue of "temple marks" or edge curling.



3. Winding and Warping: Managing the Tension

Perhaps the most demanding application for a DC motor is in winding. After fabric is woven or yarn is spun, it must be wound onto cones or beams.

The DC Role: Winding machines utilize a center winder setup. As the package (the spool of yarn) grows in diameter, the rotational speed of the motor must decrease to keep the surface speed (and thus the tension) constant. DC motors with closed-loop control systems handle this "taper tension" perfectly. If an AC motor were used without a sophisticated drive, the tension would increase as the package builds up, leading to crushed cones or stretched yarn.



Beyond Motion: The Future of DC in Textiles

It would be disingenuous to say that DC motors are taking over the industry. The trend is certainly toward energy-efficient, permanent-magnet synchronous motors (a type of AC motor) and brushless DC (BLDC) motors.

However, for the application of DC motor in textile industry retrofits and heavy-duty precision zones, the traditional DC motor remains a vital asset. Many mills in developing nations continue to rely on the rugged reliability of DC drives because they are easier to repair on-site compared to complex solid-state AC drives.

Moreover, with the advent of digital DC drives, the old drawbacks of high maintenance are being mitigated. These modern drives monitor armature current and speed continuously, allowing for predictive maintenance—alerting engineers to brush wear before a catastrophic failure shuts down an entire production line.



From the moment a bale of cotton is opened to the moment a roll of finished fabric is packed, motion control dictates quality. While the industry evolves with automation and energy savings, the application of dc motor in textile industry remains a cornerstone for operations that demand high starting torque, precise speed regulation, and reliable constant tension.

Whether it is the shunt motor maintaining perfect twist on a spinning frame or a compound motor driving the heavy cylinders of a calendar machine, these motors continue to spin the world’s threads together. Understanding the specific uses of motor in textile industry—and choosing the right type for the right job is often the difference between high-yield, premium fabric and costly production downtime.
