SHAKTI INDUSTRIAL CORPORATION
CNC TURNING CENTER CNC 135A
AED 10,000.00 - 20,000.00
/Piece
MOQ: 1 Piece
Lead Time
Quantity (Pieces)
1-5
> 6
Lead Time (Days)
15
Negotiated
Get the latest update on price, transportation and customization.
AED 10,000.00
SKU
SHAKTI0001
Basic Info
| Product Type | Precision-engineered CNC machine |
| Brand Name | Hardik CNC Automation |
| Model Name | CNC 135A |
| Swing Over Bed | 320 mm |
| Standard Turning Dia. | 135 mm |
| Max. Turning Dia.* | 150 mm |
| Max. Turning Len.* (From Chuck Face) | 240 mm |
| Rapid Traverse Rate | 24 m/min |
| Spindle Motor Power (Mitsubishi) | 3.7/5.5 kw |
| Spindle Motor Power (Fanuc) | 3.7/5.5 kw |
| Max. Spindle RPM | 4000 rpm |
| Spindle | A2-4 |
| Spindle Bore | 33 mm |
| Max. Bar Capacity | 25 mm |
| Chuck Size | 135 |
| No. of Stations | 8/12 |
| Max. Boring Bar Dia. | 32/25 mm |
| Tool Size (Cross Sectional)Tool Size (Cross Sectional) | 20 x 20/16 x 16 mm |
| Quill Dia. | 50 mm |
| Quill Taper | MT-4 |
| Quill Stroke | 120 mm |
| Adjustable Thrust | 300 kgf |
| Positioning Accuracy | 0.01 mm |
| Positioning Repeatability | 0.005 mm |
| Machine Weight (Approx.) | 2100 kg |
| Width | 1790 mm |
| Length | 1230 mm |
| Height | 1630 mm |
| X | Axis Travel-100 mm |
| Z | Axis Travel-260 mm |
| Features | Fanuc 0i TF Plus, Mitsubishi M80 or Siemens CNC Controller, 8 Station Servo Turret, Tailstock with Hydraulic Quill, Hydraulic Chuck, Servo Spindle Motor, Linear Motion Guideways, Precision Ground Ballscrew, Auto & Manual Coolant System, Centralized Programmable, Oil Lubrication Electrical Cabinet 220V / 50Hz with Air Conditioning Unit. Chip Tray - Rear, Laser Calibrated Axis for Precision Positioning Accuracy & Repeatability |
| Country of Manufacture | India |
Packaging & Delivery
| Product Weight | 2,100.00 Kg |
| Shipping Port | Deendayal Port |
Video Description
Our Vision & Mission

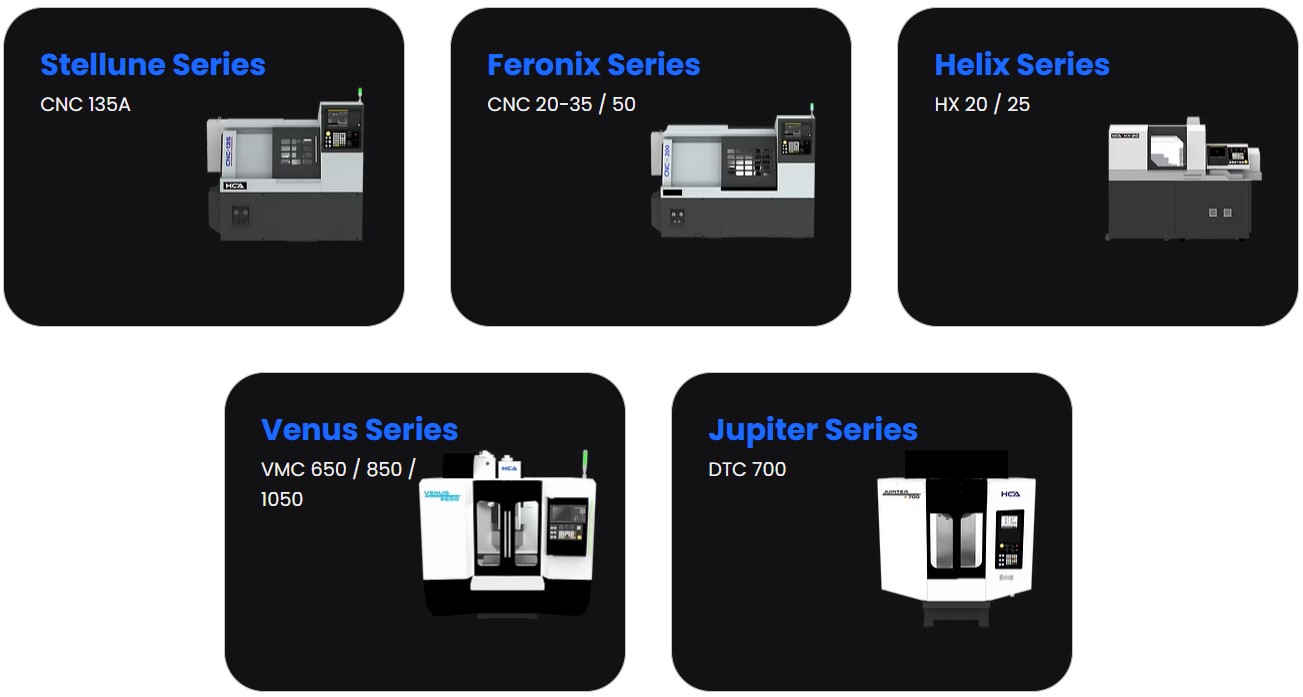

Our Products
