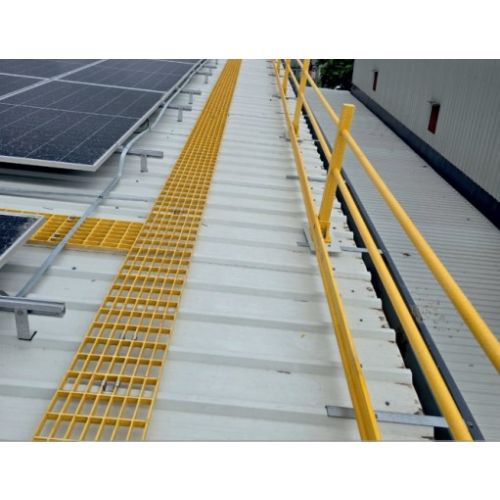

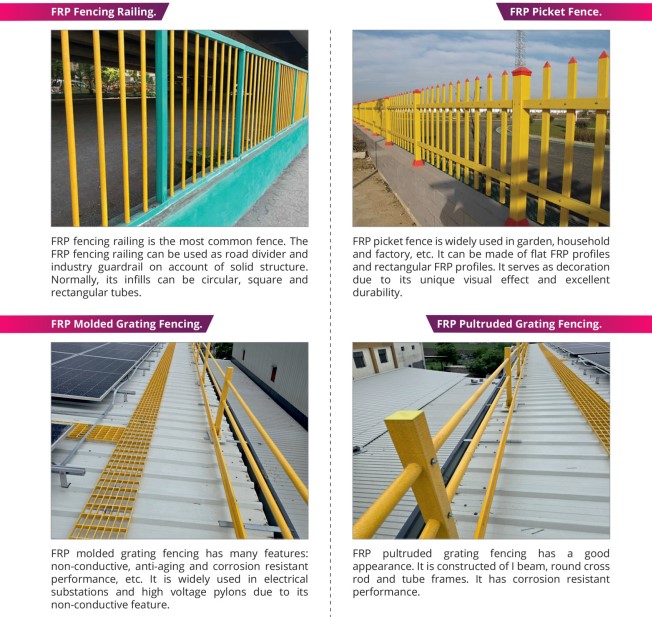

FRP Molded Grating Fencing Panel | Corrosion Resistant, Non Conductive, Anti Aging | Fast Install, Maintenance Free | Ideal for Electrical Substations, Road Dividers, Industrial Guardrails
Basic Info
| Product Type | FRP Grating |
| Brand Name | RS EXIM |
| Grating Type | Moulded FRP Grating, Pultruded FRP Grating |
| Thickness | 17 mm, 25 mm |
| Mesh Grid Type | Square Mesh 17mm X 38mm X 38mm, Square Mesh 25mm X 38mm X 38mm, Square Mesh 25mm X 38mm X 75mm |
| Rib Thickness | 5.7 mm |
| Rib Center-to-Center | 38 mm |
| Open Area | Open Area 72% |
| Maximum panel size | 652 mm × 2010 mm; 1220 mm × 3660 mm; 1220 mm × 3680 mm |

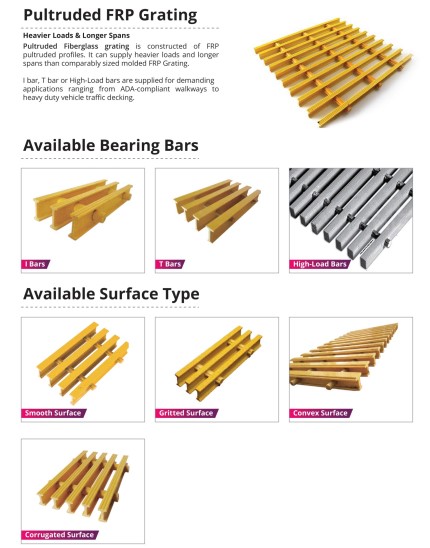

| Bearing Bar Type | I Bars, T Bars, High-Load Bars |
| Surface Finish | Smooth Surface, Gritted Surface, Convex Surface, Corrugated Surface |
| Color | Any colour of your choice (custom) |
| Load Capacity | Heavier Loads, Longer Spans, Heavy duty vehicle traffic decking (Pultruded context) |
| Corrosion Resistance | Corrosion resistant, Suitable for chemical industries, salt water environments, waste treatment plants (highly corrosive atmosphere) |
| Electrical Properties | Non Conductive (Dielectric), Electrical Insulation, Non-Magnetic, Non-Sparking |
| Fire Resistant | Flame retardant, Tested to ASTM E-84 and ASTM D-635, Self-extinguishing / flame spread resistance (as described) |
| Slip Resistance | Permanent Slip Resistance, Anti-slipping (surface options mentioned) |
| UV Resistance | UV inhibitor (UV resistant) |
| Weight Advantage | Weigh 4 times less than comparable steel gratings, 13 lighter than Steel Grating |
| Applications | Airport stairs, chemical plant, water treatment plant, desalination plant, electrical rooms, marine application, flooring, drain covers, platform walkways, ramps, security safety fence, commercial application, metals, mining industries, electrical substat |
| Standards & Certifications | ASTM E-84, ASTM D-635 |

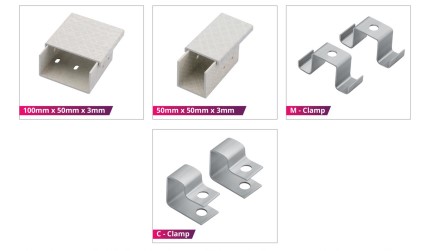

| Fastening Requirement | M clamp, C clamp. Fasteners material SS202 or SS304 |
| Country of Manufacture | India |
Packaging & Delivery
| Product Weight | 100.00 Kg |
| Shipping Port | Kandla Port |
About Us
RS EXIM is one of the leading manufacturers of FRP Moulded Gratings. RS EXIM Gratings meet the highest international standards for its high strength, corrosion resistance, long life and safety. Manufactured from various carefully selected resin systems these Gratings are designed to deliver many years of reliable service, outperforming the traditional materials. Light in weight and easy to install, a complete range of moulded Gratings are available to satisfy various industrial needs, high load requirements, as well as mesh Grades to meet falling object solid floor solutions as well as stair treads, complimented with handrail systems enable complete access stairways and work platforms solutions. These are manufactured in an open mould, using a hand lay-up process. Continuous fibre rovings are manually inserted in longitudinal and transverse directions, and thoroughly wetted-out with periodic applications of resin. This use of continuous rovings allows the creation of large, single-piece panels, with bidirectional strength properties. The Company can produce over 20MT of gratings each month with a monthly capacity for 1500 grating panels. RS EXIM offers a range of molded gratings designed to meet the load requirement for a variety of industrial purposes. FRP gratings have exceptional strength-to-weight ratios compared to conventional materials and perform reliably for many years - even in heavy - duty conditions.
