AL FANOUS GLAZING LLC

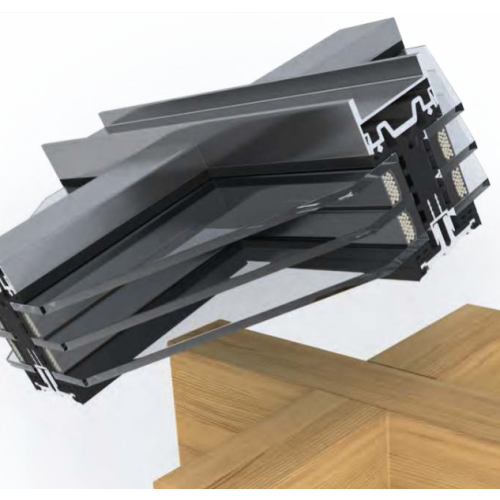

UNILUX FineLine Aluminum-Clad Wooden Facade System – Premium Energy-Efficient, Customizable Contemporary Wood-Aluminum Mixed Material Facade, High Security, Weather-Resistant, Large Glass Formats, German Engineering Quality
AED 1,000.00 - 2,500.00
/SquareMeter
MOQ: 100 SquareMeters
Lead Time
Quantity (Pieces)
1 - 50
>50
Lead Time (Days)
7
Negotiated
Get the latest update on price, transportation and customization.
AED 2,500.00
SKU
ALFANOUS0048
Basic Info
| Model Name | Alu-Clad Wooden Facade |
| Facade System Type | Curtain Wall, Window Wall, or Panelized (modular) |
| Profile Width | 68–84 mm typical |
| Structural Beam Size | Customizable, engineered for project requirements |
| Multi-story Capability | Yes, tested for residential/commercial multi-story façade |
| Drainage System | Concealed channel, moisture directed outside, high-efficiency drainage |
| Ventilation System | Passive or integrated (based on building requirements) |
| Glass Carrier Material | Aluminium main, stainless steel options |
| Glass Thickness Range | 24 mm – 56 mm |
| Resistance Ratings | Wind, water, and burglary-resistant per European standards (EN/RC2-3) |
| Exterior Coating Type | Powder-coated aluminium (RAL/DB/NCS colors), anodized/multi-color |
| Wood Species | Oak, Pine, Larch, Exotic interior / furniture-grade |
| Size / Dimensions | Fully customizable, up to 6 meters panel height possible |
| Frame Installation Depth | 68 mm, 84 mm, or custom |
| Opening Direction | Fixed, sliding, or tilt-turn - based on design |
| Design Elements | Flush panel, pilaster strips, glazed-in-sash, multiple glass layouts |
| Exterior Cladding Material | Aluminium, powder coated or anodized |
| Cladding Color | 2,132 RAL, NCS, DB shades, multi-color possible |
| Cladding Profile Type | ModernLine or LivingLine, rounded or purist |
| Thermal Separation Technology | Warm-edge spacers, multi-chamber frame design |
| Glazing Options | Double, triple, ornamental, safety, designer glass panels |
| Triple Self-locking System | Yes, standard with multi-point locks and anti-lift device |
| Construction Style | Aluminium-clad timber structure, steel-reinforced as standard |
| Glass Types | Float, satinato, tempered, designer, safety, acoustic |
| Edge Profile | Flush, ornamental, corner joint options |
| Glazing Thickness and Type | 24–56 mm, double/triple, FG160, FG605 as per catalog |
| Glass Cut-Outs | Custom cut-outs, round, square, vertical, or curved shapes |
| Light Cut-Outs | Vertical, horizontal, custom transom and sidelight options |
| Sidelights and Transoms | Available; single/double panels, fixed or openable |
| Handle Types | Stainless steel, brass, designer options, concealed or surface |
| Handle Packages | Multi style packages, interior/exterior, keyed and electronic upgrade |
| Locking Systems | Three/four-point multipoint, electronic/self-locking, remote option |
| Security Features | Steel reinforcement, safety glass, anti-lift, electronic access option |
| Threshold Options | Stainless steel, insulated, sloped or flat |
| Seal Type | Multi-sealing system, water-tight and acoustic, EPDM or silicone |
| Hinges | Concealed, stainless steel, high-load, custom for façade |
| Escutcheon Plates Types | Stainless steel, brass, custom or designer shapes |
| Usage | Premium energy-efficient façade system for luxury residential/commercial |
| Features | Custom colors & wood, multi-glass, high security, weather & acoustic proof, German engineering |
Packaging & Delivery
| Product Weight | 65.00 Kg |
| Shipping Port | Jabel Ali Port |
