RAJ HYDROFLEX PVT LTD

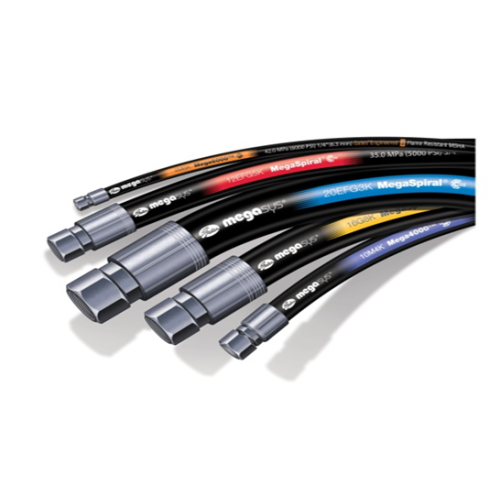

Mega Spiral Wire Hoses (SAE 100R15, R13, R12) – High Pressure, Heavy Duty Hydraulic Hoses | Steel Wire Reinforced, Durable & Flexible
AED 20.00 - 70.00
/Meter
MOQ: 100 Meters
Lead Time
Quantity (Pieces)
1 - 100
101 - 500
> 501
Lead Time (Days)
2
4
Negotiated
Get the latest update on price, transportation and customization.
AED 20.00
SKU
HP001
Basic Info
| Hose Type | Spiral Wire Hydraulic Hose (SAE 100R15 / SAE 100R13 / SAE 100R12) |
| Brand Name | Gates |
| Model Name | Gates MegaSys EFG6K (R15), EFG5K (R13), EFG4K (R12) or equivalents |
| Inner Diameter | Available in 1/4" to 3 |
| Outer Diameter | 0.94"–2.5" (24–65mm), varies by inner diameter and series |
| Reinforcement | 4 (R12/13) or 6 (R15) layers of high-tensile steel wire, spiral-wound |
| Tube Material | Black, oil-resistant synthetic rubber (typically Nitrile or equivalent) |
| Cover Material | Black, oil/abrasion/weather-resistant synthetic rubber (Neoprene; optional MegaTuff® for extra abrasion resistance) |
| Working Pressure | R15: up to 6,000psi (420bar); R13: up to 5,000psi (350bar); R12: up to 4,000psi (280bar) |
| Minimum Bend Radius | e.g., 6" (152mm) for 1" ID; 17.5" (440mm) for larger sizes—varies by diameter and type |
| Burst Pressure | R15: up to 24,000psi (1,650bar); R13: up to 20,000psi (1,380bar); R12: up to 16,000psi (1,100bar) |
| Temperature Range | -40°C to +121°C (-40°F to +250°F) |
| Length | Standard coils 10m, 20m, 40m, 50m, 100m. custom lengths available. |
| Coupling Recommendations | Gates GlobalSpiral™; MegaCrimp®, GS/GS-MAX Pressure; Stainless Steel S Series; use brand-matched |
| Certification | Meets SAE J517 (100R15/13/12), ISO 3862, ISO 18752, EN 856 4SP/4SH/R12, MSHA flame resistance, DNV, ABS where specified |
| Temperature Resistance | Maintains performance from -40°C to +121°C; resistant to hot hydraulic fluids |
| Fluid Compatibility | Compatible with petroleum-based fluids, biodegradable hydraulic fluids (polyolester, polyglycol, vegetable oils) |
| Surface / Layline Marking | Color-coded, dual/striped printed layline for easy identification, size, pressure, and standards marked |
| Country of Manufacture | India |
| Application | Extreme/high pressure hydraulics for construction, mining, oil & gas, heavy machinery, agriculture, hydrostatic drives |
Packaging & Delivery
| Product Weight | 1.50 Kg |
About us
We are in this field for the past 21 years and serving this dynamic and complex market which requires a wide range of products. At par service, Technically Fit Assemblies, Affordable prices and topmost technical assistance - these all makes us to be the top contender amongst our competitors. Our services encompass on-site technical support, in-house testing, packaging to customer demands, on site vendor managed ...
Our Products
Manufacturing Machineries

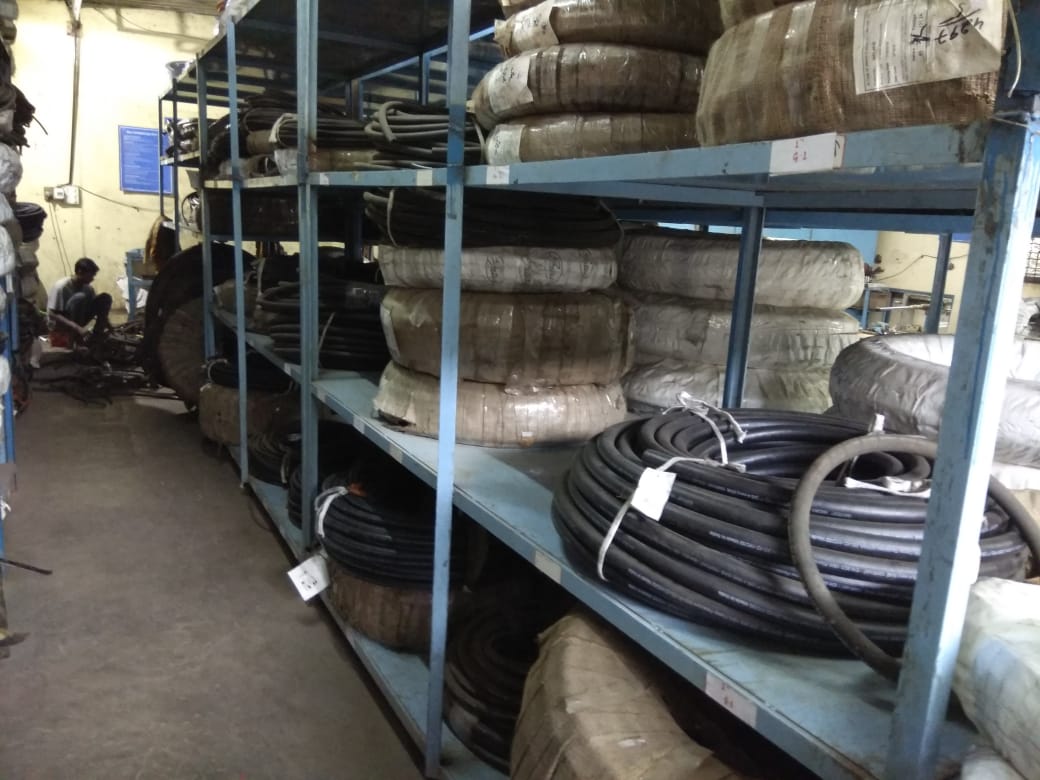

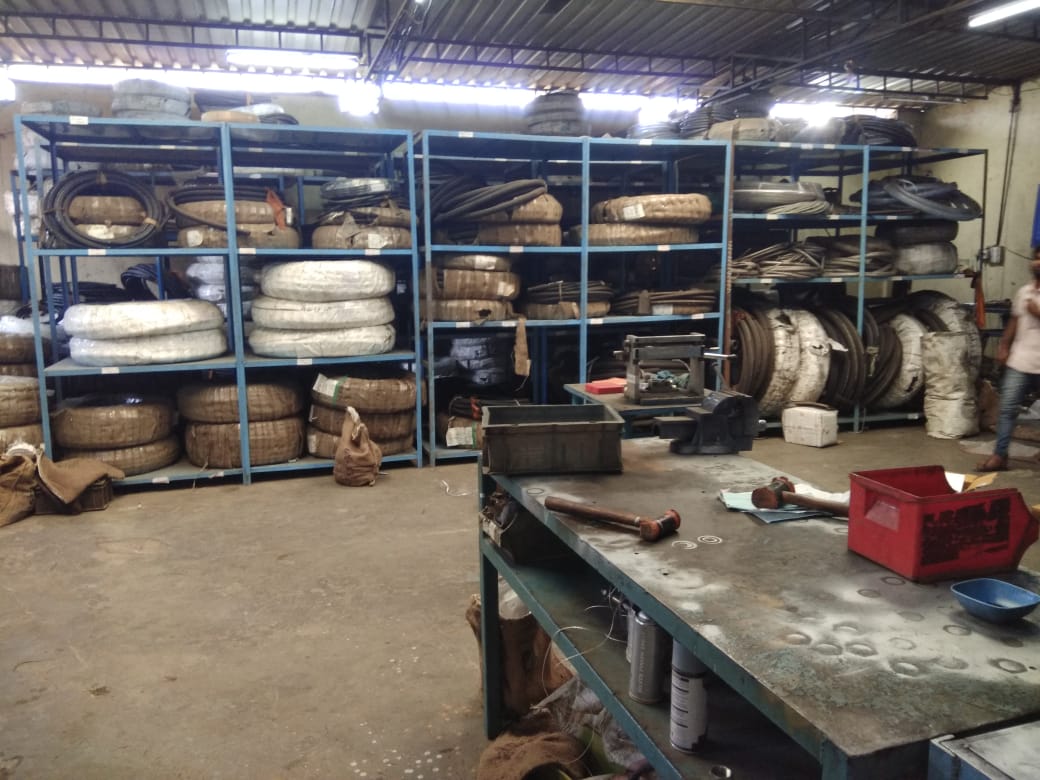

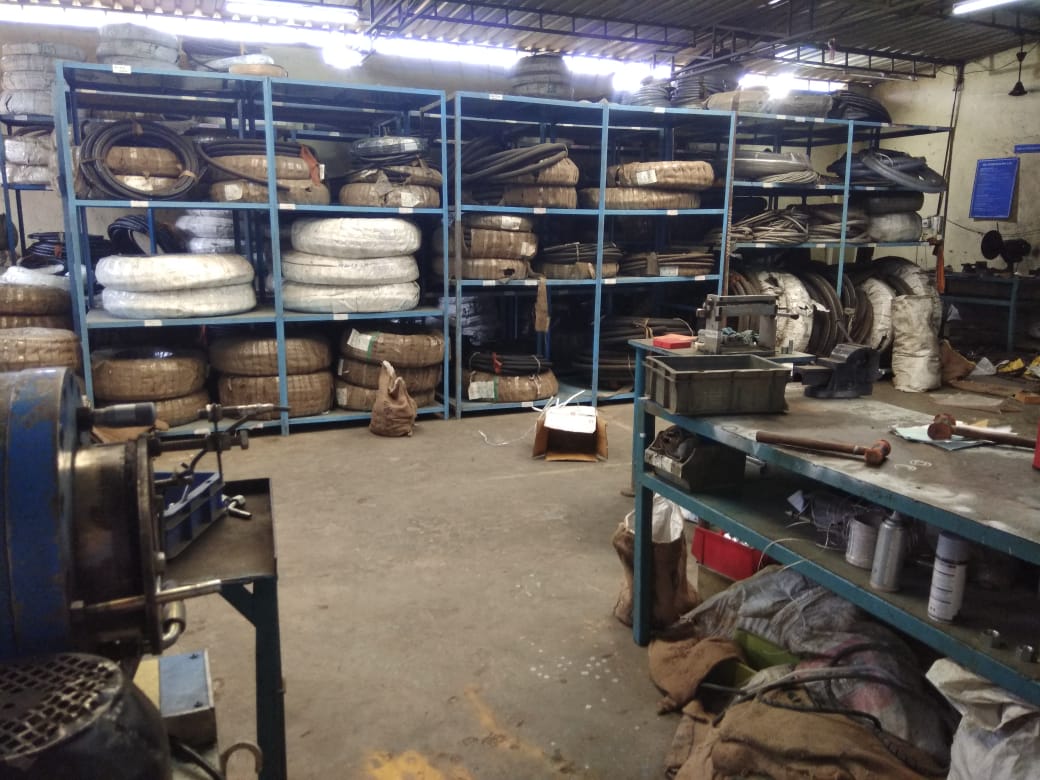

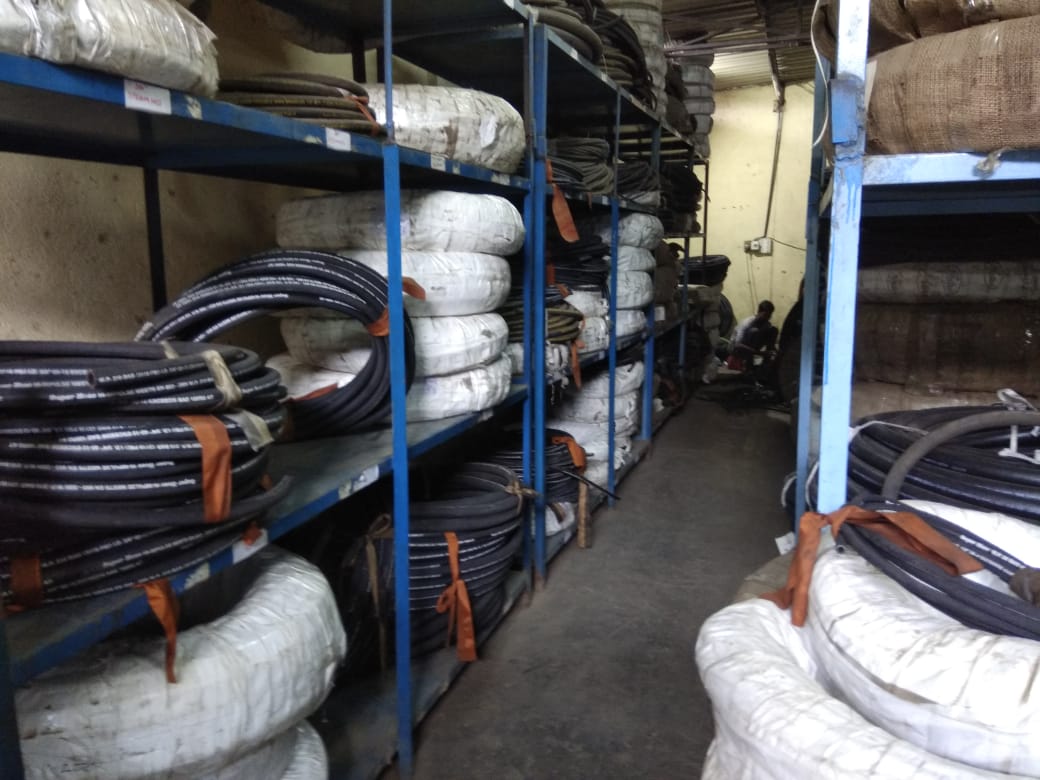

Our Warehouse
