SHAKTI INDUSTRIAL CORPORATION

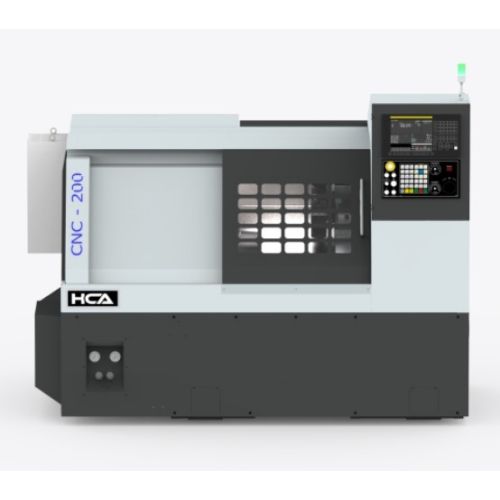

FERONYX Series CNC20-35 B Precision CNC Turning Machine with A2-6 Spindle Nose, 200 mm Chuck Size, Roller Guideways and 4000 RPM Spindle Performance
AED 75,425.00 - 75,430.00
/Piece
MOQ: 1 Piece
Lead Time
Quantity (Pieces)
1 - 30
Lead Time (Days)
30
Customisation
Customized Logo (1)
Customized Color Paint (1)
Get the latest update on price, transportation and customization.
AED 75,430.00
SKU
SHAKTI0003
Basic Info
| Brand Name | HCA |
| Machine Type | CNC Turning Machine |
| Series | FERONYX Series |
| Controller Options | Fanuc 0i TF Plus, Mitsubishi M80, Siemens CNC Controller |
| Turret Stations | 8/12 |
| Tailstock Type | Tailstock with Hydraulic Quill |
| Chuck Type | Hydraulic Chuck |
| Spindle Motor Type | Servo Spindle Motor |
| Guideway Type | Roller Type Guideways |
| Ballscrew Type | Precision Ground Ballscrew |
| Coolant System | Auto and Manual Coolant System |
| Lubrication | Centralized Programmable Oil Lubrication |
| Electrical Cabinet | 220V / 50Hz with Air Conditioning Unit |
| Chip Tray Position | Rear |
| Axis Calibration | Laser Calibrated Axis |
| Swing Over Bed | 450 mm |
| Standard Turning Diameter | 250 mm |
| Maximum Turning Diameter | 365 mm |
| Maximum Turning Length From Chuck Face | 350 mm |
| X | Axis Travel - 200 mm |
| Z | Axis Travel - 410 mm |
| Rapid Feed X and Z | 24 m/min |
| Spindle Motor Power | 7.5/11 kW |
| Maximum Spindle Speed | 50-4000 rpm |
| Spindle Nose | A2-6 |
| Spindle Bore | 65 mm |
| Maximum Bar Capacity | 50 mm |
| Chuck Size | 200 mm |
| Maximum Boring Bar Diameter | 40 mm |
| Tool Size Cross Section | 25 x 25 mm |
| Quill Diameter | 80 mm |
| Quill Taper | MT-4 |
| Quill Stroke | 110 mm |
| Adjustable Thrust | 300 kgf |
| Positioning Accuracy | 0.007 mm |
| Repeatability | 0.005 mm |
| Machine Weight Approx | 3050 kg |
| Machine Width | 2120 mm |
| Machine Length | 1430 mm |
| Machine Height | 1850 mm |
| Optional Features | Stabilizer, Chip Conveyor, Hydraulic Collet Chuck, Bar Feeder, Mist Collector, Coolant Gun |
| Country of Manufacture | India |
Packaging & Delivery
| Product Weight | 3,050.00 Kg |
| Shipping Port | Deendayal Port |
