SHIV SHAKTI FABRICATORS

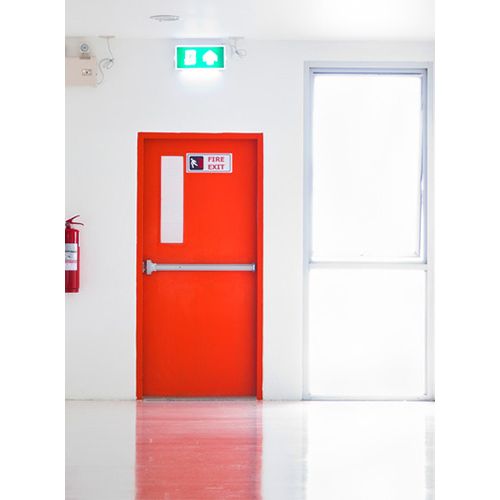

Fire Rated Steel Door with Honeycomb/Rockwool Infill, Galvanized or Stainless Steel Frame, Vision/Louvre Options, 60-120 Min Rating
AED 1,200.00 - 4,500.00
/Piece
MOQ: 1 Piece
Lead Time
Quantity (Pieces)
1-10
> 11
Lead Time (Days)
15
Negotiated
Get the latest update on price, transportation and customization.
AED 4,500.00
SKU
SHIVSHAKTI0001
Basic Info
| Product Category | Fire Rated Door |
| Product Type | Fire Door / Fire Rated Steel Door |
| Product Name | Fire Rated Door |
| Purpose | Fire-resistant rated door for fire protection and loss prevention; passive fire protection; reduces spread of fire or smoke between compartments; enables safe escape during fire and similar emergencies |
| Key Features | Ease of access, visibility, fire rating, air tightness, acoustics |
| Ease of Access | Usually painted bright red for emergency visibility and often fitted with push bars |
| Visibility | Vision panels can be used in interior compartment zones so flames or smoke may be seen and collisions avoided |
| Fire Rating Feature | Ability to withstand fire and remain intact for the rated duration, measured in minutes or hours |
| Air Tightness | Smoke seals help prevent smoke transfer between safe egress and burning compartments |
| Acoustic Feature | Sound-reducing fire doors used where acoustic control is needed |
| Wall Rating 4 Hr | IS:3614 Part II 120 min; BS:476 Part 22 120 min; SDI:118-01 180 min |
| Wall Rating 2 Hr Vertical Communication Openings | IS:3614 Part II 120 min; BS:476 Part 22 60 min; SDI:118-01 90 min |
| Wall Rating 1 Hr Occupancy Division | IS:3614 Part II 120 min; BS:476 Part 22 60 min; SDI:118-01 60 min |
| Wall Rating 1 Hr Corridor/Room Partitions | IS:3614 Part II 60 min; BS:476 Part 22 30 min; SDI:118-01 45 min |
| Wall Rating 2 Hr Severe Exterior Fire Exposure | IS:3614 Part II 120 min; BS:476 Part 22 60 min; SDI:118-01 90 min |
| Wall Rating 1 Hr Moderate Exterior Fire Exposure | IS:3614 Part II 60 min; BS:476 Part 22 30 min; SDI:118-01 45 min |
| Frame Material | Galvanized Steel / Stainless Steel |
| Sheet Thickness Gauge | 14 / 16 / 18 / 20 |
| Standard Frame Size | 100 x 57 mm / 100 x 70 mm |
| Single Rebate Frame | 143 x 57 mm |
| Double Rebate Frame Design | Metered / Butted / Welded |
| Frame Assembly | 2100 mm / 2200 mm / 2400 mm |
| Standard Wall Opening Heights | 2700 mm / 3000 mm |
| Frame Joint Types | Metered Joint (Single Rebate), Bolted Joint (Single Rebate), Welded Joint (Single Rebate) |
| Door Infill Options | Honeycomb Infill / Rockwool Infill |
| Honeycomb Infill Properties | High strength-to-weight ratio, uniform crushing strength, high shear strength, excellent impact resistance, durable, decay/insect resistance treatment possible, sound deadening, insulating properties, rigid structure with small I-beams, uniform thickness, flat surface, easy to add lites/louvers/features, reinforces full width and height of door, suitable for exterior or interior use |
| Rockwool Infill Properties | Inorganic fibre core made from diabase/basalt rock with coke and limestone, high temperature resistance, superior acoustic properties, used in steel-stiffened doors, suitable for exterior and security doors, available in varying strengths, commonly used with 20 gauge steel and heavier gauges for security doors, stiffener spacing about 2 inch to 4 inch, welded at top and bottom and to inside skins on 4 inch to 5 inch centers, water repellent, non-hygroscopic, non-capillary |
| Rockwool Fire Test Detail | Passive temperature 780 degree C at 80 mm thickness and 100 kg/m3 density according to DIN 52271 |
| Rockwool Water Absorption Standard | BS 2972 Section 12 / ASTM C-209 |
| Rockwool Thermal Conductivity Standard | BS 874 / ASTM C-177 / C 518 |
| Rockwool Sound Absorption Standard | BS 3638 / ISO 354 / ASTM C-423 |
| Rockwool Non | Combustible Standard - BS 476 Part 4:1970 / ASTM E-136 / Class A to ASTM E-84 |
| Door Components | Frame Header, Frame Hinge Jamb, Frame Strike Jamb, Hinge Plate, Hinge Cover, Strike Plate, Hinge, Leaf Base, Honeycomb, U-Channel Top, Leaf Cover, Lock Fixing Plate, Sashlock, Escutcheon, Cylinder, Leaver Handle Rose, Lever Handle, M5 Screw, Anchor Bolt Fixing, U-Channel Bottom |
| Common Design Types | FF Full Flush, VS Vision Square, VR Vision Round, VD Vision Diamond, VN Vision Narrow, VM Vision Multiple, HG Half Glaze |
| Door Design Options | Flush, Vision Light, Rectangle, Narrow Light, Half Glass, Two Half Glass, Full Glass, Vision Light with Louvered, Louvered, Full Louvered |
| Design Guidance | Approved fire rating and dimensions must be considered for fire-rated doors, and a door handing chart is used as a guide for specifying design types |
| Country of Manufacture | India |
Packaging & Delivery
| Product Weight | 100.00 Kg |
| Shipping Port | Mundra Port |

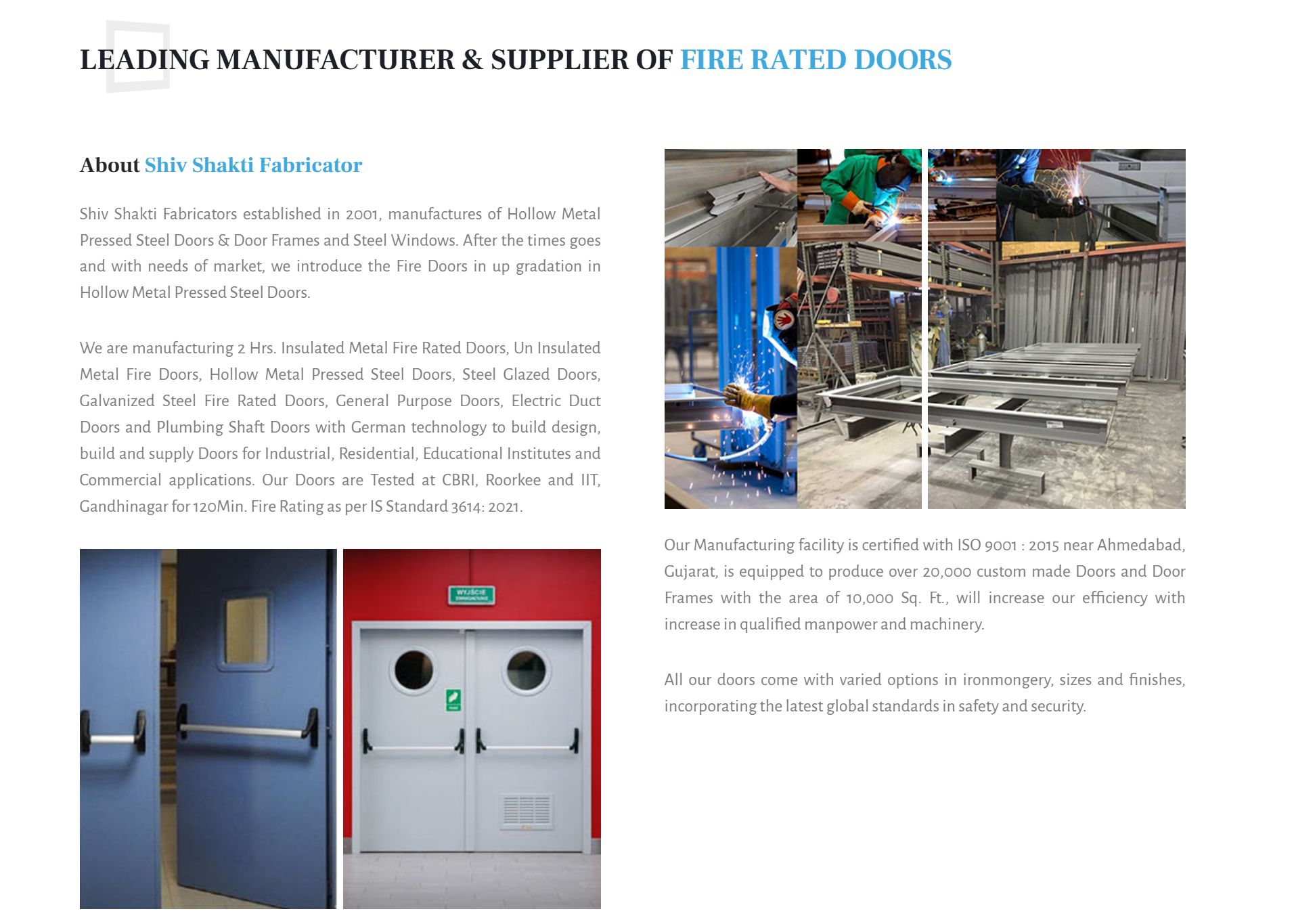

About Us
Our Vision & Mission
Our Products
Our Projects
Why Choose Us?

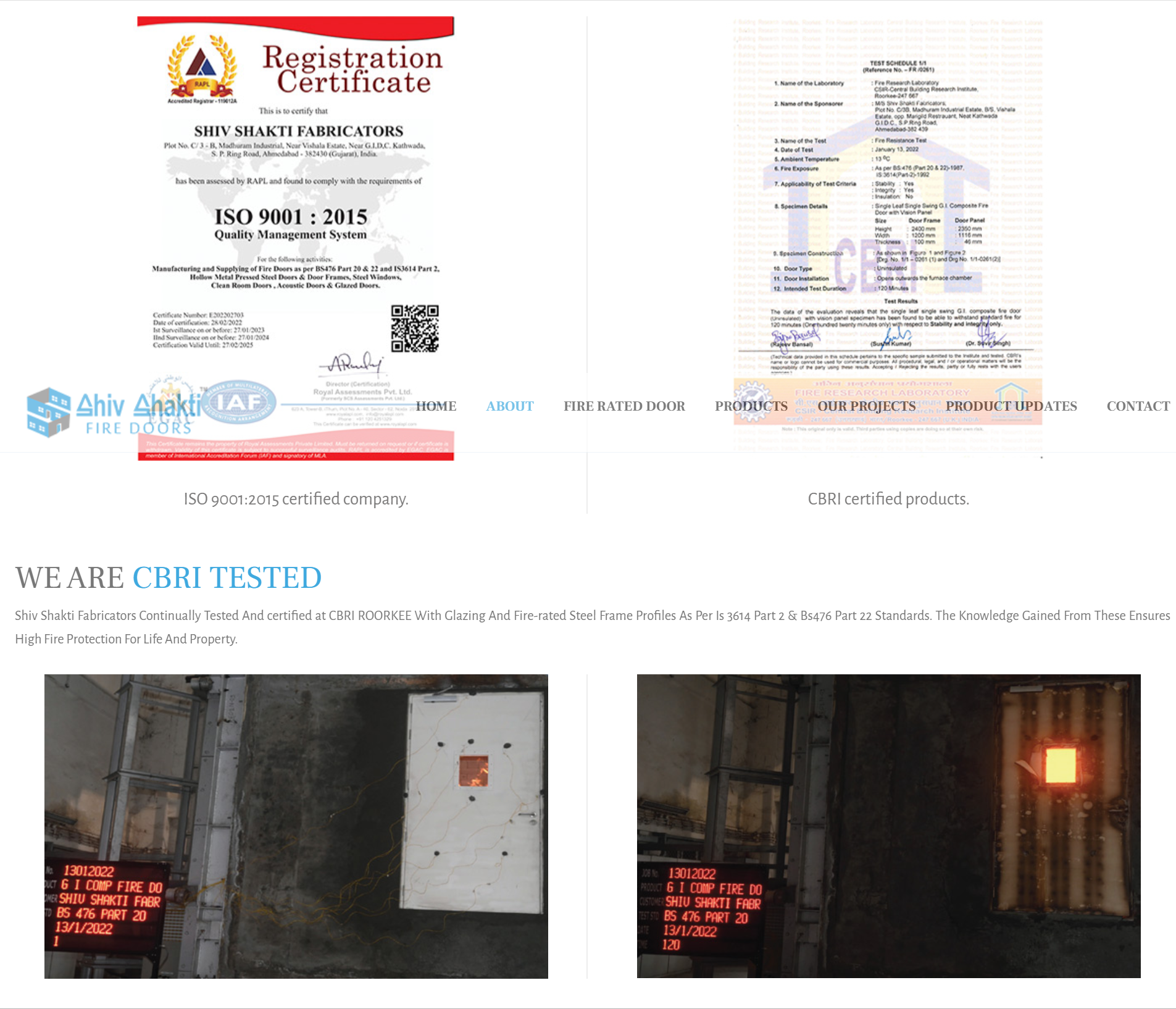

Our Certifications

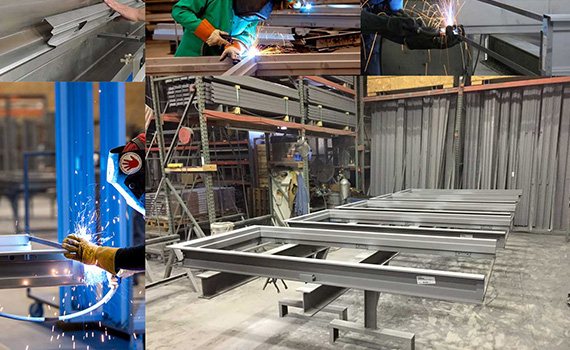

Our Manufacturing Facility
