SHAKTI INDUSTRIAL CORPORATION

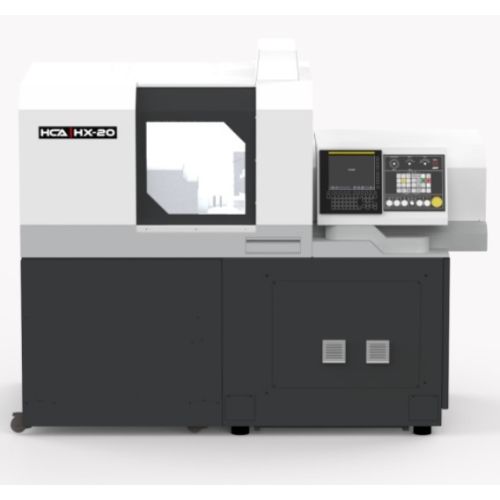

HX-20 Sliding Head Machine with 21 Tool Capacity, 8000 RPM Main and Back Spindle, Compact Design and High Precision Machining for Small Parts
AED 173,485.00 - 173,490.00
/Piece
MOQ: 1 Piece
Lead Time
Quantity (Pieces)
1 - 45
Lead Time (Days)
45
Customisation
Customized Logo (1)
Customized Color Paint (1)
Get the latest update on price, transportation and customization.
AED 173,490.00
SKU
SHAKTI0010
Basic Info
| Brand Name | HCA |
| Machine Type | Sliding Head Machine |
| Series | HX Series |
| Maximum Machining Diameter | 20 mm (25 mm optional) |
| Maximum Machining Length | GB 200 mm per chucking, 170 mm for 25 spec, NGB 2.5D |
| Spindle Through Hole Diameter | 25 mm |
| Main Spindle Speed | Max 8000 rpm |
| Gang Rotary Tool Spindle Speed | Max 5000 rpm, Rated 4000 rpm |
| Maximum Chuck Diameter of Back Spindle | 20 mm (25 mm optional) |
| Back Spindle Speed | Max 8000 rpm |
| Number of Tools | 21 |
| Gang Tool Post Tool Size | 12 mm |
| Sleeve Size | 25 mm |
| Main Spindle Collet Chuck | TF25 (TF30 for 25 mm) |
| Back Spindle Collet Chuck | TF25 (TF30 for 25 mm) |
| Rotary Tool Collet Chuck | ER16 |
| Chuck for Drill Sleeves | ER16 |
| Guide Bushing | TD25NS (CD25 for 25 mm) |
| Rapid Feed Rate All Axes Except X1 | 32 m/min |
| Rapid Feed Rate X1 Axis | 30 m/min |
| Spindle Drive Motor | 2.2 / 3.7 kW |
| Tool Spindle Drive Motor | 0.75 kW |
| Back Spindle Drive Motor | 2.2 / 3.7 kW |
| Air Pressure | 6 Bar |
| Machine Weight Approx | 2250 kg |
| Machine Width | 2220 mm |
| Machine Length | 1250 mm |
| Machine Height | 1840 mm |
| Standard Accessories | Main spindle chucking device, Back spindle chucking device, Rotary guide bushing device, Cut-off tool breakage detection, Workpiece Collector, Coolant unit with level indicator, Lubricating oil supply unit, 3-color signal tower light |
| Optional Features | Fixed guide bushing device, Long workpiece unit, Workpiece conveyor, Chip conveyor, Coolant flow rate detector |
| Country of Manufacture | India |
Packaging & Delivery
| Product Weight | 2,250.00 Kg |
| Shipping Port | Deendayal Port |
