SHAKTI INDUSTRIAL CORPORATION

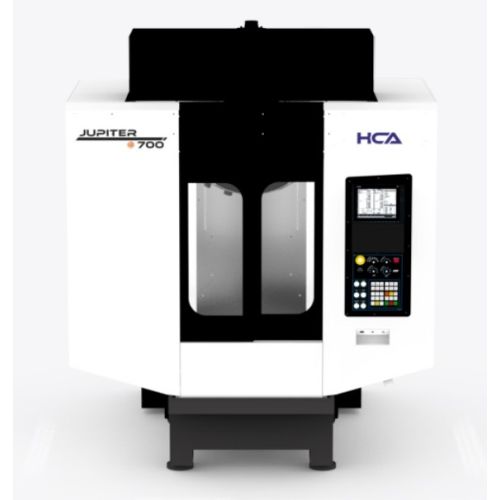

JUPITER-700 Drill Tap Center with 21 Tool ATC, Direct Drive BT30 Spindle, 10000 RPM Speed and High Precision Linear Guideways for Fast Machining
AED 117,675.00 - 117,680.00
/Piece
MOQ: 1 Piece
Lead Time
Quantity (Pieces)
1 - 60
Lead Time (Days)
60
Customisation
Customized Logo (1)
Customized Color Paint (1)
Get the latest update on price, transportation and customization.
AED 117,680.00
SKU
SHAKTI0006
Basic Info
| Brand Name | HCA |
| Machine Type | Drill Tap Center |
| Series | JUPITER Series |
| Controller Options | Fanuc 0i MF Plus, Mitsubishi M80 Controller |
| ATC Stations | 21 |
| ATC Type | Bi-Directional Swivel Type |
| Tool Selection Method | Random Shortcut Method |
| Spindle Motor Type | Servo Spindle Motor |
| Guideway Type | Linear Motion Guideways |
| Ballscrew Type | Precision Ground Ballscrew |
| Coolant System | Auto and Manual Coolant System |
| Lubrication | Centralized Programmable Oil Lubrication |
| Electrical Cabinet | 220V / 50Hz with Air Conditioning Unit |
| Chip Tray Position | Rear |
| Table Size | 800 x 400 mm |
| Maximum Table Load | 350 kg |
| Table T | Slot - 3 x 14 x 100 mm |
| X | Axis Travel - 700 mm |
| Y | Axis Travel - 400 mm |
| Z | Axis Travel - 300 mm |
| Spindle Face to Table Top Distance | 180-480 mm |
| Rapid Traverse X Y Z | 50/50/56 m/min |
| Speed Range | 10000 rpm |
| Rated Power | 3.7/5.5/7.5 kW |
| Spindle Nose | BT-30 |
| Spindle Type | Direct Drive |
| Number of Tools | 21 |
| Maximum Tool Diameter | 50 mm |
| Maximum Tool Weight | 3 kg |
| Positioning Accuracy | 0.008 mm |
| Positioning Repeatability | 0.005 mm |
| Machine Weight Approx | 3500 kg |
| Machine Width | 2550 mm |
| Machine Length | 2060 mm |
| Machine Height | 2220 mm |
| Optional Features | Rotary Table, Increased Daylight Area, Coolant Gun, Chip Conveyor, Tooled-Up Solutions |
| Country of Manufacture | India |
Packaging & Delivery
| Product Weight | 3,500.00 Kg |
| Shipping Port | Deendayal Port |
