SHAKTI INDUSTRIAL CORPORATION

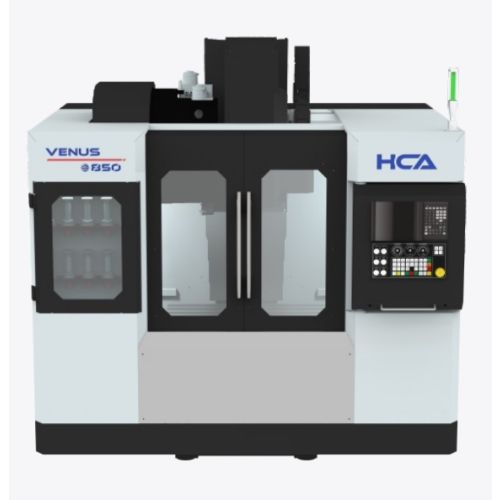

VENUS Series VENUS-850 Vertical Machining Center with 20 Tool Arm Type ATC, BT40 Spindle, 8000 RPM Speed and 1000 x 500 mm Table Size
AED 136,355.00 - 136,360.00
/Piece
MOQ: 1 Piece
Lead Time
Quantity (Pieces)
1 - 60
Lead Time (Days)
60
Customisation
Customized Logo (1)
Customized Color Paint (1)
Get the latest update on price, transportation and customization.
AED 136,360.00
SKU
SHAKTI0008
Basic Info
| Brand Name | HCA |
| Machine Type | Vertical Machining Center |
| Series | VENUS Series |
| Display Size | 10.4 inch |
| Controller Options | Mitsubishi M80V, Fanuc 0iMF Plus, Siemens 828D Controller |
| Tool Changer Capacity | 20 |
| Auto Tool Changer Type | Arm Type |
| Spindle Type | Belt Driven Spindle |
| Guideway Type | Roller Guideways on all Axes |
| Electric Panel Air Conditioning | Yes |
| Coolant System | Yes |
| Oil Coolant Separator | Yes |
| Chip Tray Position | Rear |
| Lubrication | Automatic Lubrication System |
| Leveling Pad | Yes |
| Table Size | 1000 x 500 mm |
| Maximum Table Load | 600 kg |
| Table T | Slot - 18 x 5 x 100 mm |
| X | Axis Travel - 850 mm |
| Y | Axis Travel - 500 mm |
| Z | Axis Travel - 500 mm |
| Spindle Nose to Table Surface | 100 - 600 mm |
| Spindle Center to Z | Axis Sliding Cover - 550 mm |
| Spindle Speed | 8000 rpm |
| Spindle Motor Power Mitsubishi | 7.5/11 kW |
| Spindle Motor Power Fanuc | 7.5/11 kW |
| Spindle Taper | BT40 |
| Rapid Traverse Rate | 30 m/min |
| Cutting Feed Rate | 10 m/min |
| Maximum Tool Length | 250 mm |
| Maximum Tool Weight | 8 kg |
| Tool Diameter With Adjacent Tool | 80 mm |
| Tool Diameter Without Adjacent Tool | 125 mm |
| Positioning Accuracy | 0.008 mm |
| Positioning Repeatability | 0.005 mm |
| Machine Weight With ATC Approx | 4800 kg |
| Power Requirement | 20 kVA |
| Machine Width | 2450 mm |
| Machine Length | 2710 mm |
| Machine Height | 2660 mm |
| Optional Features | Rotary Table, Increased Daylight Area, Coolant Gun, Chip Conveyor, Tooled-Up Solutions, Spindle Speed 10000/12000 RPM |
| Country of Manufacture | India |
Packaging & Delivery
| Product Weight | 4,800.00 Kg |
| Shipping Port | Deendayal Port |
