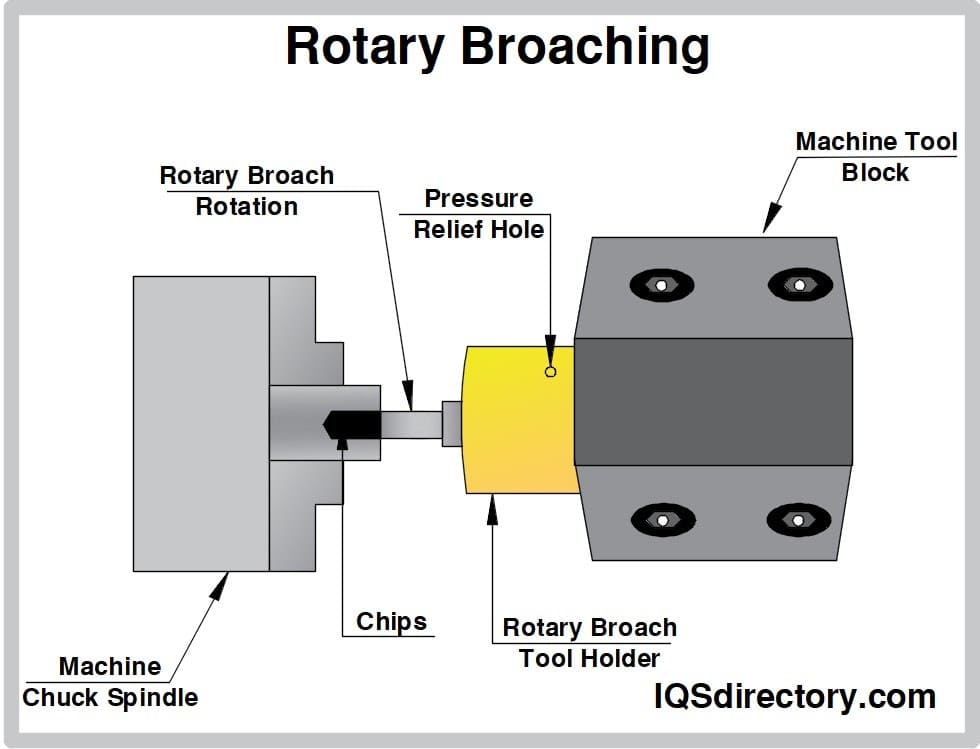

How Does a Broaching Machine Work
In modern metal manufacturing, precision is essential. Whether making automotive parts, industrial machinery components, or specialized assemblies, meeting exact specifications is key to operational success. Broaching machines are highly effective for precision metal cutting. They offer both accuracy and efficiency in a single process.
Understanding broaching technology is valuable for manufacturers who want to improve their production capabilities. This method is great for creating complex profiles, such as keyways, splines, and custom shapes, in a single linear stroke. It removes the need for multiple passes and tool changes. This efficiency has made broaching a popular choice in the automotive, aerospace, and precision engineering industries around the world.
What is Broaching?
Broaching is a machining process that uses a special cutting tool called a broach to remove material from a workpiece. Unlike other cutting methods that rely on rotation, broaching uses straight movement. A broaching machine works with hydraulic or mechanical power to pull or push the broach through the material in one smooth stroke.
The beauty of broaching is in its simplicity and efficiency. With one pass, you can create complex internal or external shapes. These can be anything from simple keyways to detailed splines and serrations.
The Basic Components of a Broaching Machine
To understand how broaching works, let's first examine the key components.
The Broach Tool: This is the main component. A broach is a long tool with multiple teeth that gradually get larger. Each tooth removes material. By the time the broach finishes its pass, it achieves the desired shape. The broach can be designed for internal shapes, like keyways, or external shapes.
The Hydraulic System. Modern broaching machines use hydraulic power to move the broach. This system provides smooth and controlled force that can be adjusted based on the material being cut and the shape's complexity.
The Workpiece Holder. This component securely holds the metal part in place during the broaching operation. Stability is critical because any movement can affect precision.
Guide rails and bearings keep the broach moving in a perfectly straight line. They maintain precision during the cutting process.
How the Broaching Process Works
Step 1: Setup and Positioning
The process starts by securing the workpiece on the machine's table. The component must be lined up with the broach path to ensure accuracy.
Step 2: Broach Engagement
The broach connects to either a pulling or pushing mechanism depending on the machine type. In pull-type vertical broaching machines, the broach is pulled through or past the workpiece from top to bottom.
Step 3: The Cutting Action
As the broach moves through the workpiece, each tooth cuts deeper. The first teeth remove rough material, while the following teeth refine the shape. This gradual cutting action makes broaching precise. No single tooth is overwhelmed.
Step 4: Cooling and Lubrication
Coolant is always used to lower heat, lubricate the cutting action, and wash away metal chips during the process.
Step 5: Completion and Retrieval
Once the broach completes its pass, the finished component is taken out. The broach then automatically goes back to its starting position, ready for the next cycle.
Why Broaching is Perfect for High-Volume Production
Traditional machining methods often require multiple operations to create complex shapes. Broaching does this in one pass, which saves a lot of time. For companies handling medium to high production volumes, this efficiency is essential.
Consider a gear manufacturer producing thousands of components with internal keyways. Each piece requires exact dimensions. A broaching machine can produce each keyway identically, in seconds, with minimal operator intervention.
Are you looking to improve your metal component manufacturing process? Check out our Automatic Vertical Broaching Machine, designed for high-precision internal and external broaching operations. It has capacities from 5 to 10 tons and features hydraulic auto-retrieval systems. These machines provide reliable results for both medium and large-scale production runs.
Types of Broaching Machines
Vertical Broaching Machines are common in modern manufacturing. They operate vertically, allowing the broach to move up or down. Vertical machines save floor space and are great for internal broaching operations.
Horizontal Broaching Machines have the broach moving parallel to the floor. These machines are used for surface broaching or when dealing with larger, heavier components.
Pull vs. Push Type
Pull-type broaching: The broach is pulled through the workpiece, putting it in tension and reducing buckling risk.
Push-type broaching: The broach is pushed through the material, working well for shorter broaches and external surfaces.
What Can Be Broached?
The versatility of broaching is remarkable. Common applications include:
Keyways: The slots in shafts and gears that allow components to lock together.
Splines: Multiple teeth around a shaft for transmitting torque.
Internal holes: Various shapes including round, square, hexagonal, or custom profiles.
Flat surfaces: Creating precise flat areas on components.
Gear teeth: Both internal and external gear profiles.
Materials that work well with broaching include steel, stainless steel, cast iron, brass, aluminum, and various alloys.
The Advantages of Modern CNC Hydraulic Broaching
Today's broaching machines have evolved significantly. CNC (Computer Numerical Control) hydraulic systems offer several advantages:
Precision Control - Hydraulic systems provide smooth, variable control over cutting speed and force. This ensures optimal performance, no matter the material hardness or shape complexity.
Automation Features - Modern machines include automatic broach retrieval, coolant systems, and chip removal. These features reduce operator fatigue and increase productivity.
Consistency - Once programmed, a CNC hydraulic broaching machine produces identical parts hour after hour. This consistency is crucial for quality control in manufacturing.
Lower Maintenance - Hydraulic systems require minimal maintenance with proper care, especially when compared to older mechanical systems.
Making the Right Investment for Your Manufacturing Needs
Choosing the right broaching equipment can transform your production capabilities. The ideal broaching machine should offer:
- Sufficient tonnage capacity for your components
- Appropriate stroke length for your broach tools
- Reliable hydraulic systems with proper cooling
- Easy operation and maintenance
- Flexibility to handle various part sizes
For manufacturers serious about quality and efficiency, investing in proven broaching technology pays dividends through reduced production time, lower scrap rates, and improved part consistency.
Ready to upgrade your production capabilities? Explore our range of Automatic Vertical Broaching Machines featuring:
- High tonnage capacity (5T, 8T, and 10T models)
- Advanced C45 guide shaft with linear bearings for superior accuracy
- Hydraulic auto-retrieval system for faster cycle times
- Touch-free cutter broaching operation
- Suitable for SS, MS, cast iron, carbon steel, brass, and aluminum
- Customizable special purpose machine (SPM) designs available
Whether you're broaching keyways in automotive components, creating splines for industrial machinery, or producing custom profiles for specialized applications, the right broaching machine ensures your parts meet exact specifications every single time.
The Future of Precision Manufacturing
Broaching machines offer a great mix of simplicity, precision, and productivity in metal manufacturing. The cutting action of the broach teeth works well with smooth hydraulic motion. This combination produces outstanding results, making this technology vital in manufacturing for many years.
For businesses looking to improve production efficiency while maintaining high quality standards, modern CNC hydraulic broaching machines offer an unbeatable combination of speed, accuracy, and reliability. The single-pass cutting action, automated features, and consistent results make broaching an investment that quickly pays for itself.
Whether you're a seasoned manufacturing professional or exploring broaching technology for the first time, the fundamentals remain clear: a well-designed broach, proper machine setup, and reliable equipment are the keys to success in metalworking production.
