How to Install Smart Wall Light Switch | A Complete Step-by-Step Guide
If you've been thinking about upgrading your home lighting, learning how to install a smart wall light switch is honestly one of the best places to start. It doesn't require a licensed electrician for most standard setups, and once it's done, you get voice control, scheduling, energy monitoring, and remote access all from a device that replaces your old toggle switch.
This guide covers everything from the tools you'll need to the wiring process, app setup, and common problems people run into. Whether you're a first-timer or someone who's done basic electrical work before, you'll find this walkthrough straightforward and easy to follow.
What Is a Smart Wall Light Switch and Why Should You Install One?
A smart wall light switch is a Wi-Fi or Zigbee/Z-Wave enabled device that replaces your standard light switch. Instead of manually flipping it on or off, you can control it through a smartphone app, a voice assistant like Amazon Alexa or Google Assistant, or set it on an automated schedule.
The difference between a traditional switch and a smart one isn't just convenience, it's about energy efficiency and better lighting control. Smart switches can track how long your lights have been on, let you dim them remotely, and even trigger lighting scenes when you walk into a room.
Popular brands in this space include Lutron Caseta, Leviton Decora, TP-Link Kasa, GE Cync, and Meross. Each one has a slightly different installation process, but the core steps remain largely the same across all of them.
Things You Should Know Before You Begin
Before you grab a screwdriver and start pulling wires, there are a few important things worth understanding.
Do You Have a Neutral Wire?
Most modern smart switches require a neutral wire to function. The neutral wire is usually white and provides the continuous current the switch needs to stay connected to your Wi-Fi even when the light is off. Older homes especially those built before the 1980s may not have a neutral wire in the switch box.
If your existing switch box only has two wires (hot and load) without a neutral, you have two options: choose a smart switch specifically designed to work without a neutral wire (Lutron Caseta is a well-known option for this), or have an electrician run a neutral wire.
Single-Pole vs. 3-Way Switch
A single-pole switch controls a light from one location. A 3-way switch controls the same light from two different locations — for example, at the top and bottom of a staircase. Smart switches are available for both types, but the wiring process for a 3-way setup is more complex and typically requires a smart switch and a companion switch or add-on switch at the second location.
Check Your Wi-Fi Band
Most budget smart switches only support 2.4 GHz Wi-Fi networks, not 5 GHz. If your router broadcasts both bands under the same name (SSID), you might run into connection issues during setup. It's worth separating them or temporarily connecting your phone to the 2.4 GHz band before pairing the switch.
Tools and Materials You'll Need
Getting everything ready before you start saves you from making unnecessary trips back and forth. Here's what you'll need:
- A flathead and Phillips screwdriver
- A voltage tester or non-contact electrical tester
- Needle-nose pliers
- Wire stripper (if wires need re-stripping)
- Electrical tape
- Wire nuts (usually included with the smart switch)
- A smartphone with the switch's app downloaded
- The smart switch itself and its included hardware
Step-by-Step: How to Install a Smart Wall Light Switch
Step 1 — Turn Off the Power at the Circuit Breaker
This is the most critical step, and it should never be skipped. Go to your electrical panel and flip the breaker that controls the light you're working on. Don't just turn the light switch off that's not the same thing.
Once the breaker is off, go back to the switch and use your voltage tester to confirm there's no live current in the wires. Hold the tester near each wire individually. If it beeps or lights up, the circuit is still live and you need to find the right breaker.
Step 2 — Remove the Existing Switch
Use your screwdriver to remove the switch plate cover. Underneath, you'll find two screws holding the switch to the electrical box. Unscrew those and gently pull the switch out from the wall be careful, as the wires are still connected.
Take a photo of the existing wiring before you disconnect anything. This is a small but very helpful habit because it gives you a reference point if things get confusing later.
Step 3 — Identify and Label Your Wires
You'll typically find the following wires inside the box:
Black wire: This is the "hot" wire (live current coming in)
White wire:It is usually the neutral wire
Green or bare copper wire:this is the ground wire
Red wire :found in 3-way switch setups as the traveler wire
In some older wiring configurations, the white wire is used as a hot wire and may have black tape around it to indicate this. Always confirm with your voltage tester before touching anything.
Disconnect the existing switch by unscrewing the terminal screws or removing the wire nuts.

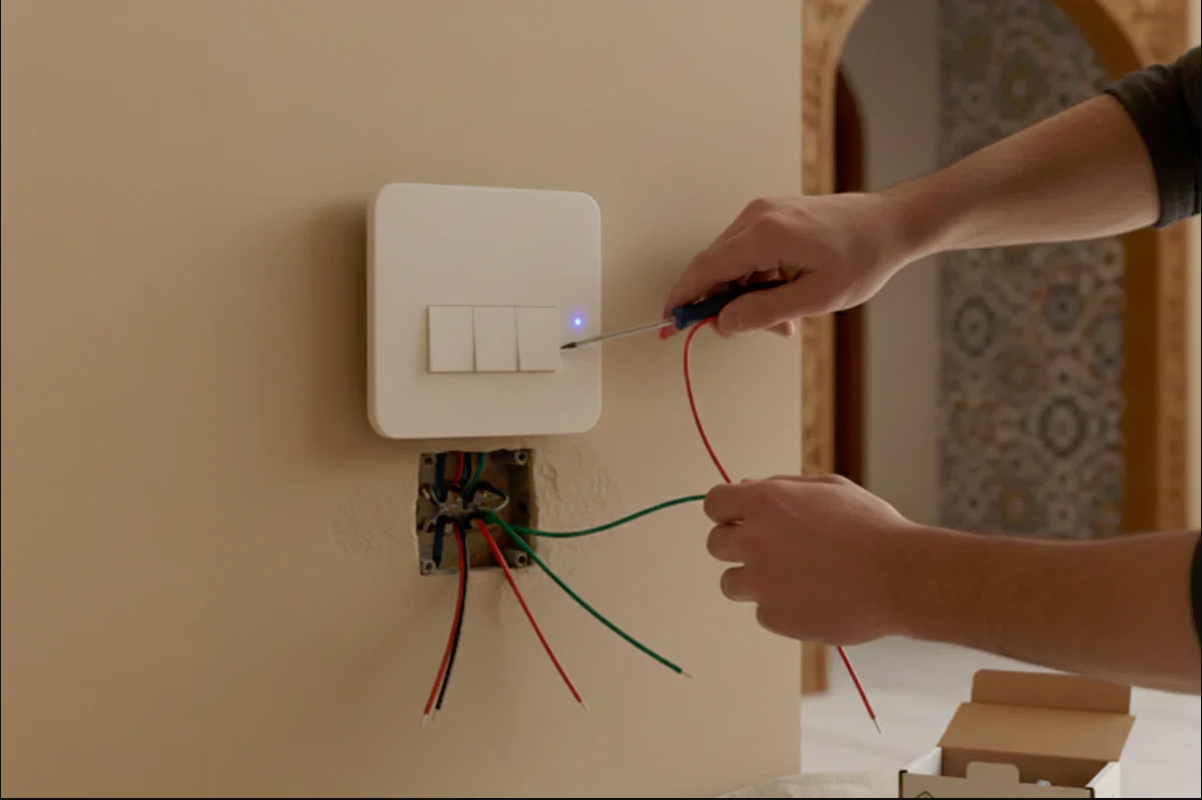

Step 4:Connect the Wires to the Smart Switch
This is where most people feel a bit uncertain, but it's actually quite manageable once you understand what connects where. Smart switches are labeled clearly and most will have terminals marked as Line (hot), Load, Neutral, and Ground.
Connect the black wire to the Line terminal
Connect the white wire to the Neutral terminal
Connect the ground wire to the Ground terminal
If there's a load wire going to the fixture, connect it to the Load terminal
Tighten each screw firmly loose connections are a common cause of flickering lights or the switch not responding properly. Tuck the wires carefully into the box and press the smart switch into place. Screw it back in and reattach the cover plate.
Step 5: Restore Power and Test the Switch
Go back to your electrical panel and flip the breaker back on. Your smart switch should light up with an indicator LED this means it's receiving power correctly. Manually press the switch to make sure the light turns on and off as expected.
If the light doesn't respond, turn the breaker off again and double-check your wiring connections. The most common issue at this stage is either a loose wire or wires connected to the wrong terminals.
Step 6: Connect the Smart Switch to Your App and Wi-Fi
Download the app associated with your smart switch brand for example, the Kasa app for TP-Link switches or the Lutron app for Caseta devices. Open the app and follow the on-screen instructions to add a new device.
The pairing process typically works like this: the app puts the switch into pairing mode (usually by pressing and holding the switch button), your phone detects it, and then you enter your Wi-Fi credentials so the switch can connect to your home network.
Once connected, you can rename the switch, add it to a room, and start setting up schedules, automations, or voice assistant integrations.
How to Set Up Voice Control After Installation
After the switch is connected to its app, linking it to a voice assistant is the next logical step. Here's how it typically works for the two most common platforms:
Amazon Alexa: Open the Alexa app, go to Devices, and tap the "+" icon to add a new device. Search for your switch brand or use the "Discover Devices" option. Once found, you can control your light by saying things like "Alexa, turn on the living room light."
Google Home: Open the Google Home app, tap "+" and then "Set up device." Choose "Works with Google" and search for your switch's brand. After linking your account, Google Home will sync with the app and your switch will appear as a controllable device.
Apple HomeKit is supported by fewer switches but is available through brands like Meross and Eve. Setup works through the Home app on your iPhone by scanning a QR code or HomeKit code on the device.
Common Problems When Installing a Smart Wall Light Switch
Even when you follow all the steps carefully, things don't always go perfectly the first time. Here are some of the most frequent issues and how to handle them:
The switch won't connect to Wi-Fi: Make sure your phone is connected to a 2.4 GHz network during setup. Also, ensure you're within a reasonable range of your router. Thick walls or interference from other devices can affect the signal.
The light flickers after installation: This usually points to an incompatibility between the smart switch and the type of bulb being used. Smart switches especially dimmer-compatible ones work best with LED bulbs that are rated for use with smart or dimmer switches. Swap the bulb and test again.
The switch turns on but the app shows it as offline: Restart your router and the switch. If the problem continues, delete the device from the app and go through the pairing process again.
There's no neutral wire in the box: As mentioned earlier, you'll need to either use a no-neutral smart switch or have an electrician install one. Do not attempt to wire a neutral-required switch without a neutral wire it simply won't work and could damage the switch.
The breaker keeps tripping: This is a sign of a wiring issue or an overloaded circuit. Turn everything off, double-check your connections, and make sure no wires are touching each other unintentionally.
Installing a 3-Way Smart Switch: What's Different
A 3-way setup requires a bit more attention. Unlike a single-pole installation, you'll have two switch locations to deal with. Most smart switch brands solve this by offering a main smart switch and a companion (add-on) switch that communicates wirelessly with the main unit.
In this setup, only the main switch connects to the Wi-Fi and app. The companion switch at the second location links to the main switch and passes the on/off signal through. The wiring involves identifying the "common" terminal wire correctly, which is typically marked in the instructions and carries the main power through the circuit.
If you're not confident with 3-way wiring, it's completely reasonable to handle the single-pole switches yourself and call a licensed electrician for the 3-way ones.
Smart Switch vs. Smart Bulb: Which Should You Choose?
People often ask whether it's better to install a smart wall light switch or simply replace the bulbs with smart bulbs. Here's the honest breakdown:
Smart switches are the better long-term investment. They work with any bulb (regular LED, halogen, etc.), don't require you to change bulbs every time one burns out, and don't lose their programming if someone turns off the wall switch.
Smart bulbs, on the other hand, are quicker to set up and don't require any wiring. However, they need to remain powered at all times to stay connected, which means a physical switch turned off will disconnect them from your network entirely.
For most households, smart switches are the more practical and cost-effective choice over time especially if you have multiple lights in a room controlled by one switch.
Safety Tips to Keep in Mind
Electrical work is safe when done correctly, but it's important to treat it with proper care:
Always confirm the power is off with a voltage tester before touching any wires never assume
Don't work on the wiring in wet or damp conditions
Use switches that are certified by UL (Underwriters Laboratories) or ETL these have been safety-tested
If at any point you're unsure about what a wire does or why there are more wires than expected, stop and consult an electrician
Do not overload your switch check the wattage rating on the switch packaging and make sure your fixtures don't exceed it
Learning how to install a smart wall light switch is a practical home improvement skill that genuinely pays off. Once it's in place, the convenience of controlling your lights remotely, scheduling them automatically, and integrating them with your broader smart home setup becomes part of your daily routine in the best possible way.
The process takes most people under 30 minutes for a standard single-pole installation, and the only real complexity comes with older homes that lack neutral wires or with 3-way switch setups. As long as you work carefully, turn the power off properly, and follow your switch's specific wiring diagram, you'll have it running without much trouble.
Take your time with the wiring, download the app before you start, and don't hesitate to ask your switch manufacturer's support team if something doesn't look right during setup. They deal with installation questions every day and can usually walk you through it quickly.
